USB3 Area scan camera IDS Imaging U3-3090SE-M/C IDS Imaging U3-3090SE Rev 1.2
uEye+
USB3 Camera
Sony IMX255 Sensor
4096x2160 Resolution
Area Scan Camera

get a quote for this product

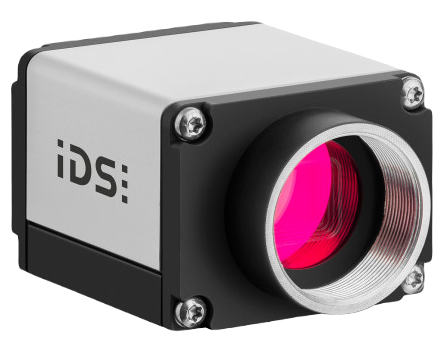

The U3-3090SE Rev.1.2 USB3 camera features a Sony IMX255 1" 8.85 megapixel global shutter CMOS sensor with a 3.45µm pixel size, and 45 fps at full 4096x2160 resolution. The U3-3090SE camera is built in a robust housing with a C-mount lens holder.

uEye SE USB 3.1 Gen1 Type C Cameras are available housed with a C-mount lens mount, or as a board-level camera with a C-mount lens mount or without a lens holder, and color or monochrome.

uEye SE USB 3.1 Gen1 Camera Family Features Features

  • Up to 25 megapixel CMOS sensors
  • USB 3.1 Gen1 w/ Type C connector
  • Suitable for single or multi-camera operation
  • Hirose-8 for GPIO

U3-3090SE-M/C Camera Features

  • 8.85 megapixel at 4096x2160 resolution
  • Sony IMX255 1" CMOS sensor
  • Housed model with C-mount lens mount
  • 45 fps
    • U3-3090SE-M-GL (B&W) Datasheet   U3-3090SE-C-HQ (Color) Datasheet U3-3090SE-M/C Manual Sensor Spec
    Software All IDS Cameras
    Manufacturer: IDS Model: U3-3090SE-M/C Total Pixels: 8,847,360
    Resolution: 4096 (h) 2160 (v) Sensor Size: 1" Color/B & W: Color / Monochrome
    Frame Rate (fps): 45 Sensor Type: CMOS Sensor Device: Sony IMX255
    Pixel Size(µm): 3.45(h) 3.45(v) A/D Bits: 12 Shutter Speed: 0.032 ms - 2000 ms
    Interface: USB3 Voltage(VDC): 5-15 V (USB power) Power(watts): 1.7 W - 4.3 W
    Lens Mount: C Shutter Type: Global Weight(grams): 111
    S/N Ratio(dB): call External Trigger: Yes Dimensions(mm): 47Lx44Wx34H

    Camera Resources


    click to calculate FOV/FL for this camera

    Lens Calculator
