USB3 Area scan camera IDS Imaging U3-3041LE-M/C IDS Imaging U3-3041LE Rev 1.2
USB3 Camera
Sony IMX273 Sensor
1456x1088 Resolution
Area Scan Camera

get a quote for this product

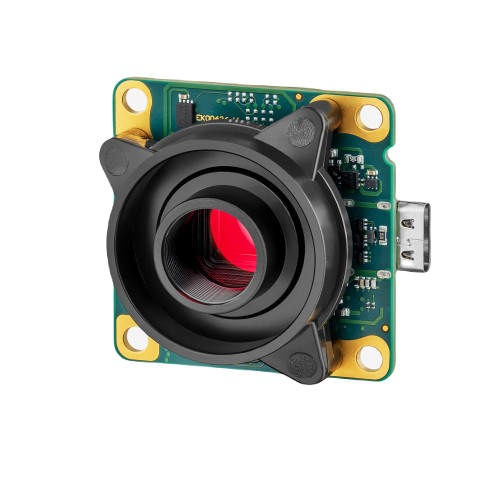

The U3-3041LE Rev. 1.2 USB3 camera features a Sony IMX273 1/2.9" 1.6 megapixel global shutter CMOS sensor with a 3.45 µm pixel size, and 230 fps at full 1456x1088 resolution. The U3-3041LE is a board-level camera with an S-mount lens holder.

uEye LE USB3 Cameras are available in housed or board-level variants with a C, CS, S mount lens holder or no lens holder for some board models, and in color or monochrome. uEye+ LE USB3 cameras can be easily integrated with 3rd party compliant software or used with IDS Peak Software Suite SDK. All IDS cameras are backed by a 3 year warranty.

uEye LE USB 3.0/3.1 Camera Family Features Features

  • VGA to 18MP Sony Pregius & Starvis / On-Semi /e2V
  • C / CS / S mount to bare board options
  • High Quantum Efficiencies (77% QE) and Dynamic range (< 75db)
  • High frame rates - 200 fps+

U3-3041LE-M/C Camera Features

  • Sony IMX273 sensor with global shutter
  • 1.6MP @ 230fps for high-speed imaging
  • 3.45µm pixel size
  • Board level camera with S-mount lens holder
Manufacturer: IDS Model: U3-3041LE-M/C Total Pixels: 1,584,128
Resolution: 1456 (h) 1088 (v) Sensor Size: 1/2.9" Color/B & W: Color / Monochrome
Frame Rate (fps): 230 Sensor Type: CMOS Sensor Device: Sony IMX273
Pixel Size(µm): 3.45(h) 3.45(v) A/D Bits: 12 Shutter Speed: 0.040 ms to 2000 ms
Interface: USB3 Voltage(VDC): call Power(watts): call
Lens Mount: S Shutter Type: Global Weight(grams): call
S/N Ratio(dB): call External Trigger: call Dimensions(mm): call
