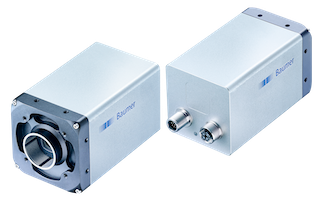

10GigE Area scan camera Baumer VLXT 06M.1 Baumer VLXT 06M.1
10GigE Camera
Sony IMX426 Sensor
800x620 Resolution
Area Scan Camera

get a quote for this product

Baumer Industrial Cameras: Visible, Area Scan Cameras - 10GigE

  • WVGA to 12MP
  • 1/1.8"-1.1" CMOS, Sony IMX25x/IMX42x sensors
  • Up to 1,578 fps at WVGA resolution
  • 10GigE (PoE) GigEVision

VLXT 06M.1 Features

  • Sony IMX426 10GigE 800x620 monochrome area scan
  • Up to 1578fps at full 800x620 resolution
  • 73% QE with 94,000 e- saturation capacity (full well)
  • 1GB image memory buffer
Manufacturer: Baumer Model: VLXT 06M.1 Total Pixels: 496,000
Resolution: 800 (h) 620 (v) Sensor Size(inch): 1/1.7 Color/B & W: Monochrome
Frame Rate(fps): 1578 Sensor Type: CMOS Sensor Device: Sony IMX426
Pixel Size(µm): 9(h) 9(v) A/D Bits: 12 Shutter Speed(µs): 1(min)/60000000(max)
Interface: 10GigE Voltage(VDC): 24V Power(watts): 11.1
Lens Mount: C Shutter Type: Global Weight(grams): 485
S/N Ratio(dB): call External Trigger: Yes Dimensions(mm): 119Lx60Wx60H

Baumer Camera

click to calculate FOV/FL for this camera

10 GigE:High Speed for Your
Machine Vision Task
10 GigE:High speed for your machine vision task whitepaper - click to read
