Allied Vision fxo992MXGE-T

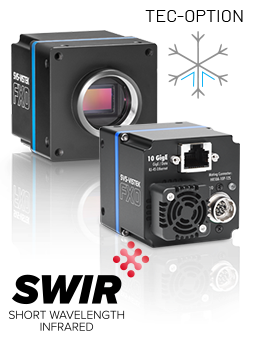

The Allied Vision fxo992MXGE-T 10GigE SWIR camera, formerly available under the SVS-Vistek brand, features a IMX992 1/1.4" SWIR sensor, Thermoelectric Cooling (TEC), 5.2 MP (2560x2048) resolution, global shutter, 3.45 µm pixel size, and 132.6 fps.
Allied Vision FXO GigE cameras combine advanced Sony Pregius S sensors with ultra-high-speed Ethernet connectivity to deliver exceptional image quality, fast data transfer, and reliable performance, providing a flexible and scalable imaging platform for next-generation machine vision systems. These GigE Vision and GenICam compliant FXO cameras are available with 10GigE, 25GigE, or 100GigE interfaces, and color, monochrome, or SWIR configurations.
FXO 10GigE, 25GigE & 100GigE Cameras Features
fxo992MXGE-T Camera Features
| Manufacturer: | Allied Vision | Model: | fxo992MXGE-T | Total Pixels: | 5,242,880 |
| Resolution: | 2560 (h) 2048 (v) | Sensor Size: | 1/1.4" | Color/B & W: | SWIR |
| Frame Rate (fps): | 132.6 | Sensor Type: | CMOS | Sensor Device: | Sony IMX992 |
| Pixel Size(µm): | 3.45(h) 3.45(v) | A/D Bits: | 12 | Shutter Speed: | - |
| Interface: | 10GigE | Voltage(VDC): | 10 to 25 V | Power(watts): | 13 |
| Lens Mount: | C | Shutter Type: | Global | Weight(grams): | 240 |
| S/N Ratio(dB): | call | External Trigger: | Yes | Dimensions(mm): | 82.1Lx50Wx50H |
fxo992MXGE-T Datasheet
