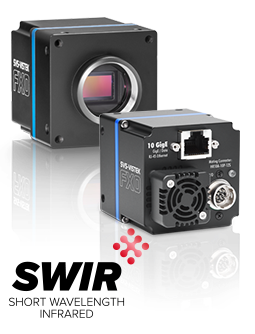

Allied Vision fxo992MXGE
The Allied Vision fxo992MXGE 10GigE SWIR camera, formerly available under the SVS-Vistek brand, features a Sony IMX992 1/1.8" sensor, 5.2 MP (2560x2048) resolution, global shutter, 3.45 µm pixel size, and 132.6 fps.
This SWIR camera have a wide spectral range from 400nm VIS to the SWIR range at 1700nm. The wide spectral range enables the cameras to identify substances by their absorption characteristics making them suitable for industrial applications such as inspection, impurity detection, and food production. The SWIR cameras are available with a GigE or CoaXPress interface.
Allied Vision FXO GigE cameras combine advanced Sony Pregius S sensors with ultra-high-speed Ethernet connectivity to deliver exceptional image quality, fast data transfer, and reliable performance, providing a flexible and scalable imaging platform for next-generation machine vision systems. These GigE Vision and GenICam compliant FXO cameras are available with 10GigE, 25GigE, or 100GigE interfaces, and color, monochrome, or SWIR configurations.
Alvium GigE and 5GigE Cameras Features
fxo992MXGE Camera Features
| Manufacturer: | Allied Vision | Model: | fxo992MXGE | Total Pixels: | 5,242,880 |
| Resolution: | 2560 (h) 2048 (v) | Sensor Size: | 1/1.8" | Color/B & W: | SWIR |
| Frame Rate (fps): | 132.6 | Sensor Type: | CMOS | Sensor Device: | Sony IMX992 |
| Pixel Size(µm): | 3.45(h) 3.45(v) | A/D Bits: | 12 | Shutter Speed: | - |
| Interface: | 10GigE | Voltage(VDC): | 10 to 25 V | Power(watts): | 10 |
| Lens Mount: | C | Shutter Type: | Global | Weight(grams): | 240 |
| S/N Ratio(dB): | call | External Trigger: | Yes | Dimensions(mm): | 76.1Lx50Wx50H |
fxo992MXGE Datasheet
