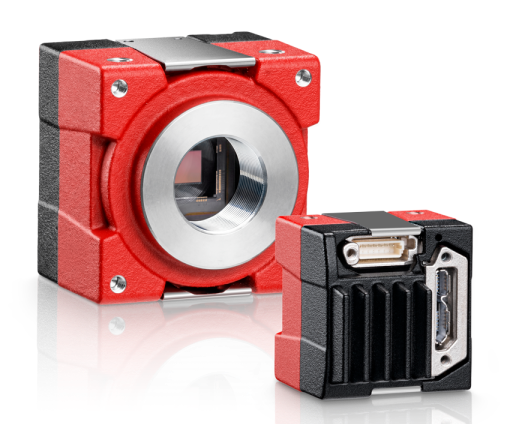

USB3 Area scan camera Allied Vision Alvium 1800 U-158 Allied Vision Alvium 1800 U-158
USB3 Camera
Sony IMX273 Sensor
1456x1088 Resolution
Area Scan Camera

get a quote for this product

The Alvium 1800 U-158 camera features a CMOS Sony IMX273 1.6MP sensor that enables imaging at 248 frames per second. Color models include an IR cut filter, monochrome models ship with no filter/protection glass.

Allied Vision Alvium series USB3.0 and CSI-2 cameras are designed for use in both machine vision and embedded applications. Offering high image quality and reducing workload for the host, Alvium enables innovation among vision system designers. The advanced ALVIUM System on Chip (SoC) performs image corrections and preprocessing tasks onboard the camera instead of on the host computer. Unlike FPGAs commonly used in machine vision cameras, the ALVIUM SoC is extremely power efficient.

Alvium USB 3.0 and MIPI CSI-2 Cameras

  • WVGA to 5MP
  • ON Semi CMOS, SONY CMOS and SenSWIR sensors
  • Up to 464 fps
  • USB3 Vision or MIPI CSI-2 interface

Alvium 1800 U-158 Features

  • Sony IMX273 1.6MP global shutter 1/3" sensor
  • 248fps at full 1456x1088 resolution
  • Available with USB3.0 or MIPI CSI-2 interface
  • 256kB image memory buffer
Manufacturer: Allied Vision Model: Alvium 1800 U-158 Total Pixels: 1,584,128
Resolution: 1456 (h) 1088 (v) Sensor Size: 1/3" Color/B & W: Color / Monochrome
Frame Rate(fps): 248 Sensor Type: CMOS Sensor Device: Sony IMX273
Pixel Size(µm): 3.45(h) 3.45(v) A/D Bits: 12 Shutter Speed(µs): 177(min)/10000000(max)
Interface: USB3 Voltage(VDC): 5V Power(watts): 2.5
Lens Mount: S/C/CS Shutter Type: Global Weight(grams): 45
S/N Ratio(dB): call External Trigger: Yes Dimensions(mm): See manual
