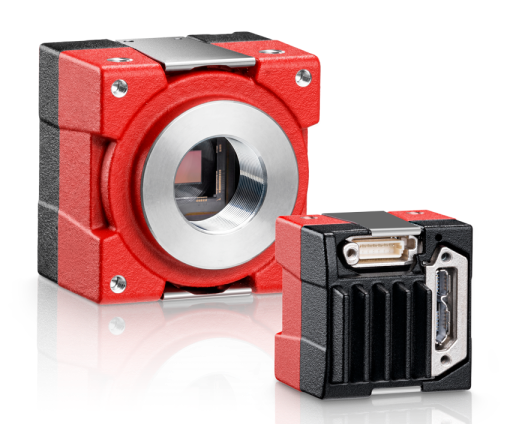

Allied Vision Alvium 1800 U-130 VSWIR
The Alvium 1800 U-130 VSWIR USB3 SWIR camera features a Sony IMX990 SenSWIR Sensor 1.2" at 1.3MP resolution, and a 119 frame rate at full resolution.
Allied Vision Alvium series USB3, and CSI-2 cameras are designed for use in both machine vision and embedded applications. Offering high image quality and reducing workload for the host, Alvium enables innovation among vision system designers. The advanced ALVIUM System on Chip (SoC) performs image corrections and preprocessing tasks onboard the camera instead of on the host computer. Unlike FPGAs commonly used in machine vision cameras, the ALVIUM SoC is extremely power efficient.
Alvium USB3,and MIPI CSI-2 Cameras Features
Alvium 1800 U-130 VSWIR Camera Features
Alvium 1800 U-130 VSWIR Datasheet
Alvium 1800 U-130 VSWIR Manual
Evaluation Heatsink
Sensor Spec
| Manufacturer: | Allied Vision | Model: | Alvium 1800 U-130 VSWIR | Total Pixels: | 1,337,472 |
| Resolution: | 1296 (h) 1032 (v) | Sensor Size: | 1/2" | Color/B & W: | SWIR |
| Frame Rate (fps): | 119 | Sensor Type: | InGaAs | Sensor Device: | Sony IMX990 |
| Pixel Size(µm): | 5(h) 5(v) | A/D Bits: | 12 | Shutter Speed: | call |
| Interface: | USB3 | Voltage(VDC): | 5V | Power(watts): | 2 |
| Lens Mount: | S, CS, C, Closed, Open, Bareboard | Shutter Type: | Global | Weight(grams): | 40 |
| S/N Ratio(dB): | call | External Trigger: | Yes | Dimensions(mm): | See manual |
