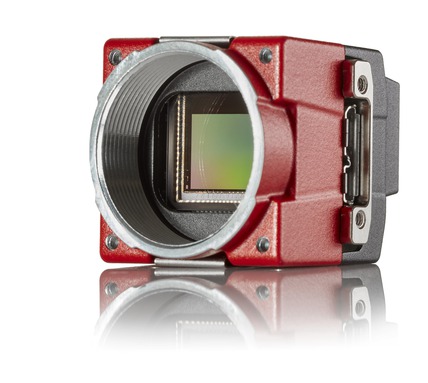

USB3 Area scan camera Allied Vision Alvium 1800 U-040 Allied Vision Alvium 1800 U-040
USB3 Camera
Sony IMX287 Sensor
728x544 Resolution
Area Scan Camera

get a quote for this product

The Alvium 1800 U-U40 USB3 camera features a Sony IMX287 1/2.9" sensor at .4MP resolution, and a 461 frame rate at full resolution. Color models include an IR cut filter, monochrome models ship with no filter/protection glass.

Allied Vision Alvium series USB3, and CSI-2 cameras are designed for use in both machine vision and embedded applications. Offering high image quality and reducing workload for the host, Alvium enables innovation among vision system designers. The advanced ALVIUM System on Chip (SoC) performs image corrections and preprocessing tasks onboard the camera instead of on the host computer. Unlike FPGAs commonly used in machine vision cameras, the ALVIUM SoC is extremely power efficient.

Alvium USB3,and MIPI CSI-2 Cameras

  • WVGA to 5MP
  • ON Semi CMOS, SONY CMOS and SenSWIR sensors
  • Up to 464 fps
  • USB3 Vision or MIPI CSI-2 interface

Alvium 1800 U-040 Features

  • Sony IMX287 WVGA global shutter 1/3" sensor
  • 292fps at full 728x544 resolution
  • Available with USB3.0 or MIPI CSI-2 interface
  • 256kB image memory buffer
Manufacturer: Allied Vision Model: Alvium 1800 U-040 Total Pixels: 396,032
Resolution: 728 (h) 544 (v) Sensor Size: 1/2.9" Color/B & W: Color / Monochrome
Frame Rate (fps): 461 Sensor Type: CMOS Sensor Device: Sony IMX287
Pixel Size(µm): 6.9(h) 6.9(v) A/D Bits: 12 Shutter Speed: 177µs to 10000000µs
Interface: USB3 Voltage(VDC): 5V Power(watts): 1.9
Lens Mount: S/C/CS Shutter Type: Global Weight(grams): 45
S/N Ratio(dB): call External Trigger: Yes Dimensions(mm): See manual
