Automation Technology MCS Series Module Compact 3D Sensors / Laser Profilers
Customized for Your 3D imaging application

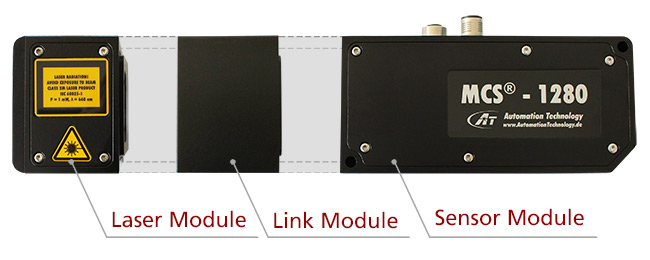

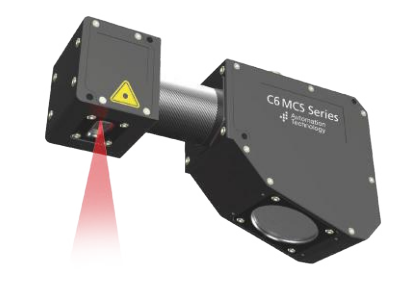

Automation Technology MCS Series Modular Compact 3D sensors / lasers profilers are customized 3D sensor laser profilers. The customer specifies that data - height resolution, working distance, scan width (x-FOV), points per profile as well as laser wavelength and safety class for a 3D sensor / laser profiler that is configured specifically for your 3D application. The sensor / laser profilers are customized at no additional charge without a Non-recurring Engineering (NRE) charge or (Minimum Order Requirement). If you need help determining your specific data, please use the contact form on this page below, or contact us. We are here to help.

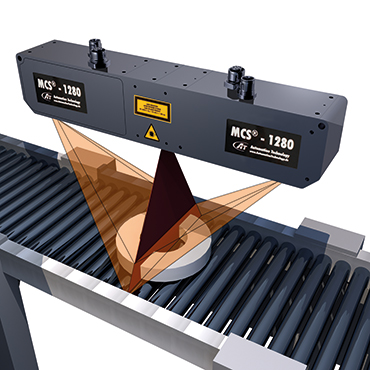

MCS 3D sensors / laser profilers are available in 4 different resolutions (1280, 2040, 3070, 4090) with measurement speed up to 26 kHz at 4096 points/profile. An optional dual-Head (two sensor modules) configuration is also available. The dual head / 2 sensor configuration provides higher measurement quality for occlusion-free 3D scans. Each module can be customized with individual data specifications to perform separate measuring tasks in parallel.

Like the Automation Technology C6 Series Compact 3D Sensors / Laser Profilers, MCS Series Modular Compact 3D sensors / lasers profilers feature factory calibrated 3D sensors, a rugged, compact design with IP67 protection, and support for the latest 3D GigE Vision / GenICam 3D with 1 Gbit/s industry standards.

Automation Technology MCS Series Modular Compact 3D sensors / lasers profilers produce superb 3D images due to their high dynamic range and extraordinary high-speed and high-precision resolution.

MCS Series Module Compact 3D Sensors / Laser Profilers Features

• Modular compact 3D sensors configured for your specific application
• Factory calibrated 3D sensors
• Optional dual-head sensor for higher measurement quality and occlusion-free 3D scans
• Measurement speed up to 26 kHz at 4096 points/profile
• Rugged, compact design and IP67 protection
• GeniCam 3.0: support of latest 3D standards
• MultiPart enables parallel output of different features (e.g. range, reflectance, scatter) at maximum profile speed with optimized pixel formats
• MultiPeak enables output of up to four different peaks for even more robust 3D data and for scanning transparent or shiny objects
• 4 different sensor resolutions available (1280, 2040, 3070, 4090)

Automation Technology offers a wide selection of 3D sensor laser profilers and configurations. See the Automation Technology 3D sensor comparision charts for additional information, or contact us.
