Effilux LED Dome & Flat Dome Lights

Effilux LED Dome lights for machine vision provide uniform light from various angles they and are ideal for illuminating objects with reflective, uneven, or curved surfaces. They are ofen used in machine vision applications for character dectection on glossy or matallic surfaces, barcode reading on curved surfaces, and defect inspection on irregular surfaces. Effilux dome lights available with a dome shape or as flat dome lights, and with IP69K protection for harsh industrial environments.

See the entire selection of Effilux LED lighting for machine vision.

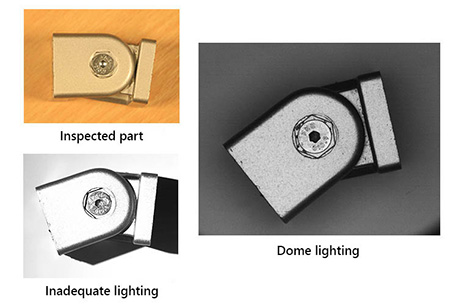

Example of dome light light illumination vs inadequate lighting

Direct illumination vs backlight illumination

EFFILUX Range LED Dome & Flat Dome Lights

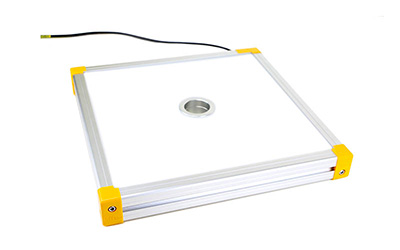

EFFILUX EFFI-FD LED flat dome light
get a quote EFFI-Flex LED flat dome Lights

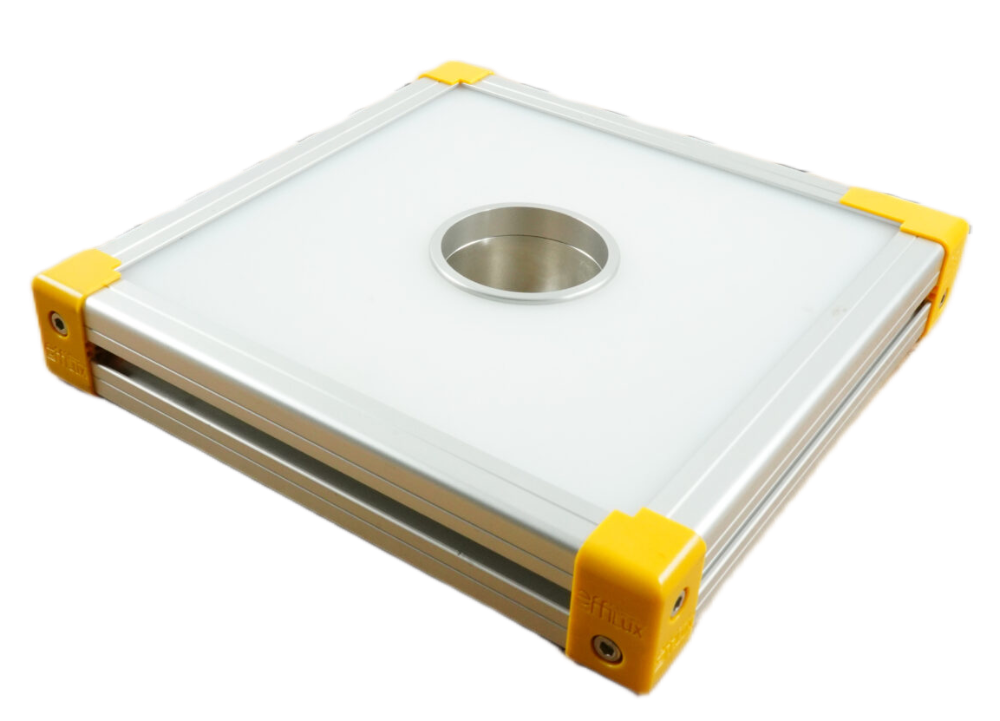

EFFI-FD LED Flat Dome Lights

The Effilux EFFI-FD dome light is a high powered flat dome light. It features an anti-reflection system to absorb reflections, an integrated dimming controller, and continuous or strobe light. The flat dome design makes it easy to integrate the EFFI-FD LED dome light into production systems. There are additional options for camera holes (39mm, 50mm, 58mm, 65mm), thin edge and IP69K protection options.

  • High-power LED flat dome light
  • Anti-reflection system to absorbs unwanted reflections
  • Integrated dimming controller provides precise Analog Intensity Control
  • Continuous or strobe light

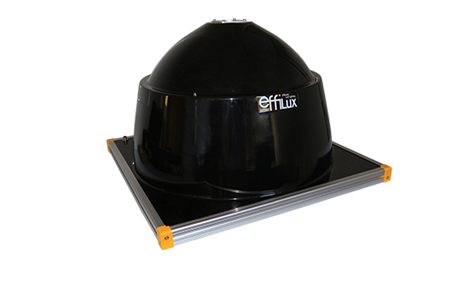

EFFILUX EFFI-MDOME LED large very high powered dome light
get a quote EFFI-MDOME LED large very high powered dome light

EFFI-MDOME Large Very High Powered LED Dome Lights

The Effilux EFFI-MDOME dome light features greater than 90% homogeneity with a choice of AutoStrobe or dimmable electronics, and a choice of monochrome of tricolor lights. This large dome light's dimensions are 639.5 mm x 639.5 mm x 427 mm, with an internal diameter of 550 mm weighing 12kg / 26 lbs.

  • Mega Dome lighting for intense illumination
  • Choice of AutoStrobe or dimmable electronics
  • Greater than 90% homogeneity
  • Choice of monochrome or tricolor lights

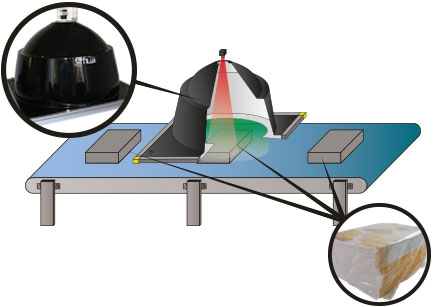

graphic showing the use of the EFFI-MDOME large high powered dome light

EFFI-MDOME Lighting Example

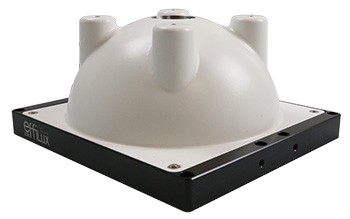

EFFI-SDome small LED dome light
get a quote EFFI-SDome small LED dome light

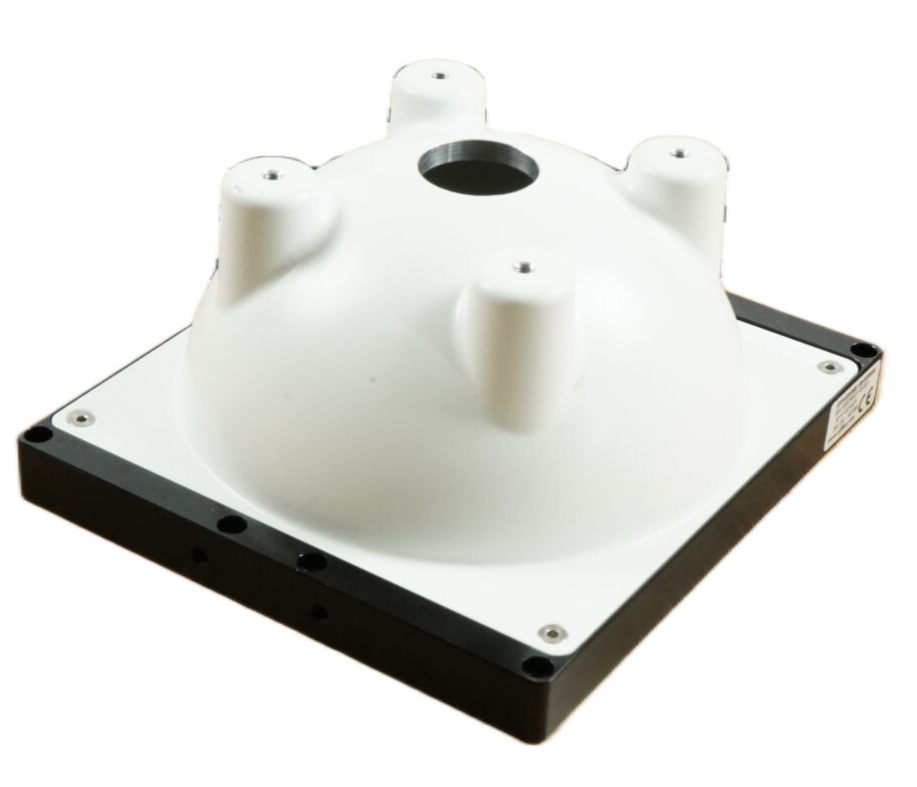

EFFI-SDome Small & Flexible Dome Lights

The Effilux EFFI-SDome dome light is a compact and flexible dome light that can be easily converted to an EFFI-SRing ring light.

The EFFI-SDome dome light features high power lighting and AutoStrobe. Monochromatic or multi-color lights are available. These dome light have 4 independent segmented channels. The color lights can be configured with a different color for each channel (blue, green, red, IR, and white colors). The 4 channels in the monochromatic light can also be controlled independently.

  • Compact & flexible dome light
  • High-power lighting with Autostrobe
  • 4 independent Channels
  • Easily convertible into EFFI-SRing






Washdown IP69K LED Bar Lights

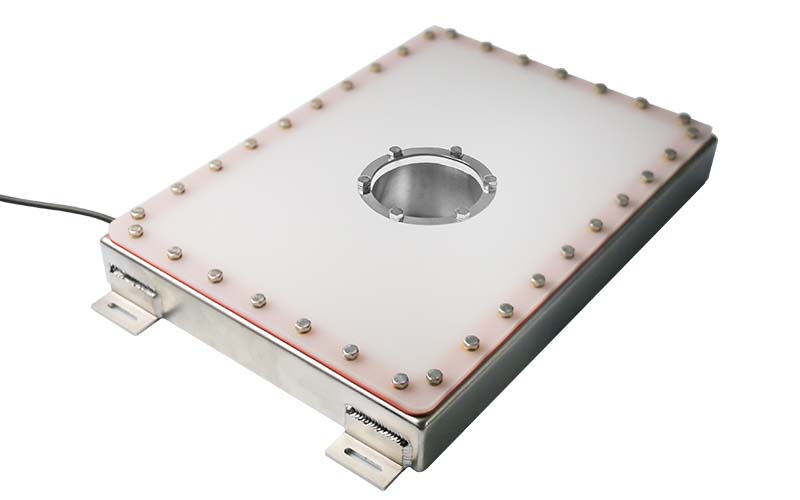

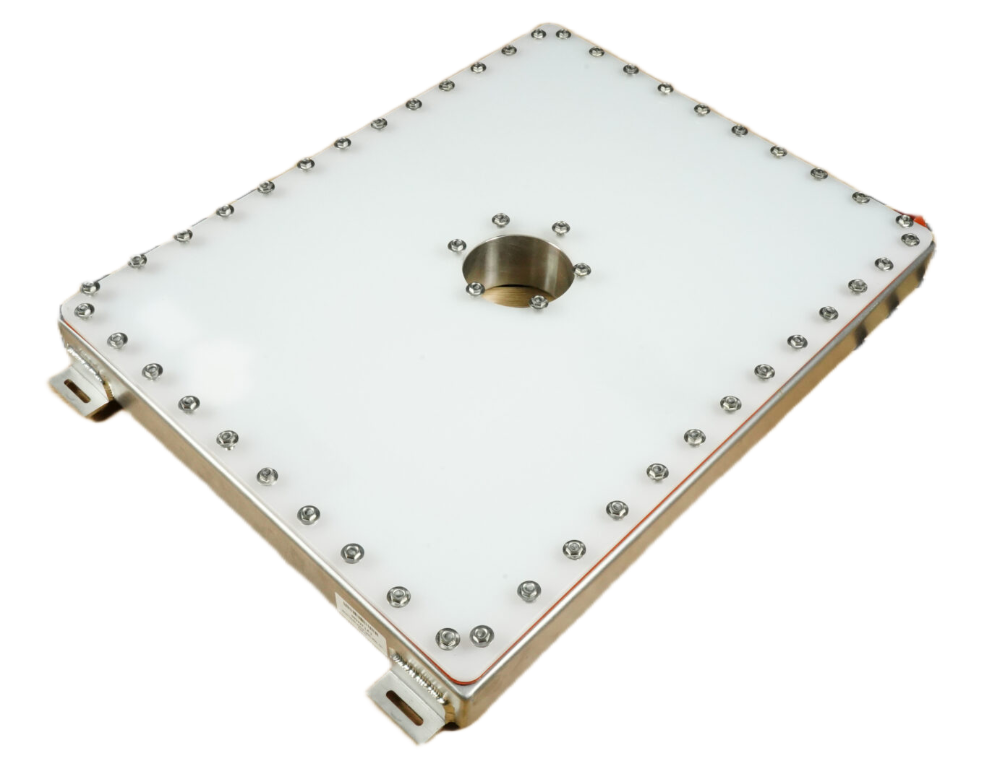

EFFI-FD IP69K waterproof LED flat dome light
get a quote EFFI-FD IP69K waterproof LED flat dome light

EFFI-FD IP69K Waterproof LED Flat Dome Lights

The Effilux EFFI-FD IP69K is a waterproof LED flat dome lights that's designed specifically for harsh industrial environments such as the food industry and other wash-down environments. The light is ideal for many machine vision applications that require both direct and diffused lighting. The flat dome design makes it easy to integrate this flat dome light into tight spaces such as in a production line.

  • IP69K protection for wash-down environments
  • Diffused illumination with high intensity
  • Continuous or strobe illumination mode
  • Flat dome design to fit into tight spaces
  • Anti-reflection system to absorbs unwanted reflections
