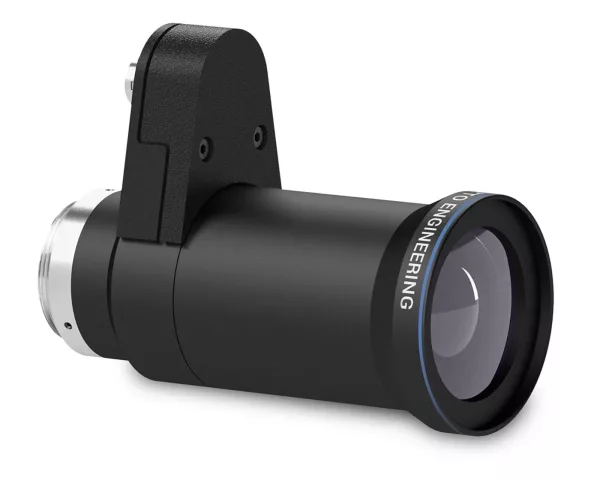

Opto Engineering EL12MP 12 MP Fixed Focal Length Lenses
with liquid lens technology for sensors up to 1.1"

Opto Engingeering EL12MP are 12 megapixel fixed focal length macro lenses integrate electronically controlled Optotune liquid lenses in the optics for rapid and precise focus adjustment. Dependable repeatability and focus stability is ensured by the precise thermal calibration algorithm. EL12MP fixed focal length lenses are designed for sensors up to 1.1".

EL12MP lenses are exceptionally well-suited for high-speed inspection tasks in industries such as food and beverage, pharmaceutical, and cosmetics. In these sectors, rapid adjustments to different product sizes or inspection points are essential. Their speed and accuracy of the autofocus make these optics ideal for guiding robotic arms in applications like pick-and-place and bin-picking, where precise object recognition and manipulation are paramount. The ability to quickly and reliably focus on objects at varying distances enhances the efficiency and accuracy of these automated processes.

• Precise and quick focus
• Optotune liquid lenses are integrated in the optics for a ready-to-use solution
• Designed for sensors up to 2/3"
• Precise thermal calibration algorithm for excellent accuracy and high repeatability
• Robust design – lifetime guaranteed for over 1 billion cycles
• Focal lengths from 6 to 25mm
• Compact macro lens - 30 mm outer diameter
• High resolution

Opto Engineering macros & fixed focal length lenses work with a variety of sensor sizes, and are available in a wide range of configurations and options. Our Sales Engineers can provide expert advice and guidance on selecting the right lens for your machine vision imaging application. Please contact us if you would like more information.
