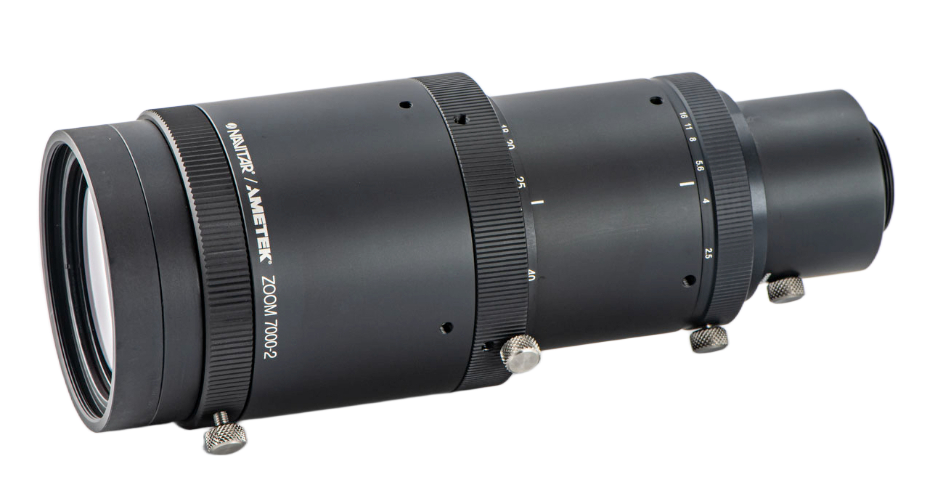

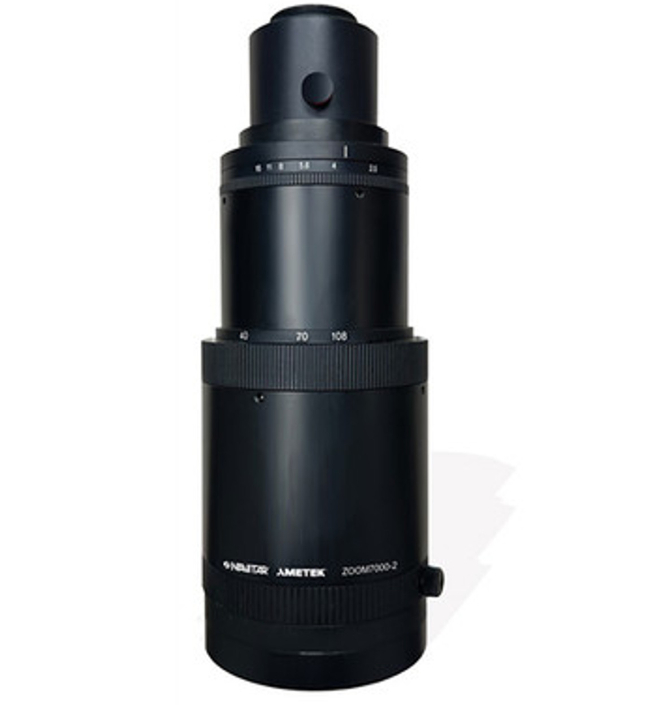

 The Navitar ZOOM 7000-2 macro lens imaging system delivers superb optical performance and image quality for visible and SWIR imaging. Their robust design ensures reliability even in harsh environments. ZOOM 7000-2 macro lenses are ideal for applications, such as machine vision, scientific and medical imaging applications.
ZOOM 7000-2 3/3” macro lenses are optimized for 5 µm pixel cameras, and feature an optical zoom, 18mm – 111mm focal length, C-Mount, Visible and VIS-SWIR coating options, and manual and motorized control options.

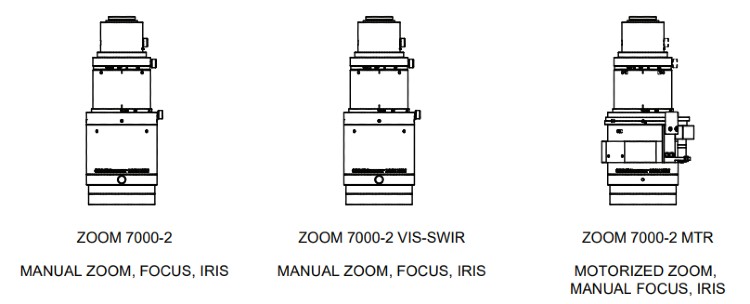

ZOOM 7000-2 lenses are available in three variations:

 Datasheet
Datasheet

       ZOOM 7000-2 Drawing
ZOOM 7000-2 Drawing
        ZOOM 7000-2 VIS-SWIR Drawing
ZOOM 7000-2 VIS-SWIR Drawing

       ZOOM System Diagram
ZOOM System Diagram

       Installation Instructions
Installation Instructions

| Focal Length (mm): | 18.6 - 111 (6X) |
| Sensor Size: | 2/3” (Ø11) |
| Iris Range (F-Stop): | 2.5 - 16 |
| Lens Type: | Zoom Lens |
| Wavelength Range: | VIS (430nm - 670nm) |
| Focusing Range (mm): | 127 - ∞ |
| Resolution, Center: | 100 |
| Resolution, Corner: | 60 |
| Distortion (TV) (%): | W 2.3% / T 1.3% |
| Mount: | C-mount |
| Iris Control: | Manual |
| Zoom Control: | Manual |
| Focus Control: | Manual |
| Filter Size (mm): | M58.0 x 0.75 |
| Size (mm): | Ø 67 x 178.2 |
| Weight (g): | 840 |
| Temperature Range: | -10°C - +50°C |
| Horizontal Field of View, 2/3" Sensor | |
| 127mm WD | 8.8mm - 51mm |
| 177mm WD | 13.2mm - 80mm |
| 227mm WD | 17.5mm - 106mm |
| 277mm WD | 21.8mm - 129mm |
| 302mm WD | 24.0mm - 141mm |
| 500mm WD - No Close-up Lens | 34.6mm - 249mm |
| 1000mm WD - No Close-up Lens | 74.6mm - 484mm |
| Applications: | Quality Control, Machine Vision, Biomedical Imaging |

| Focal Length (mm): | 18.6 - 111 (6X) |
| Sensor Size: | 2/3” (Ø11) |
| Iris Range (F-Stop): | 2.5 - 16 |
| Lens Type: | Zoom Lens |

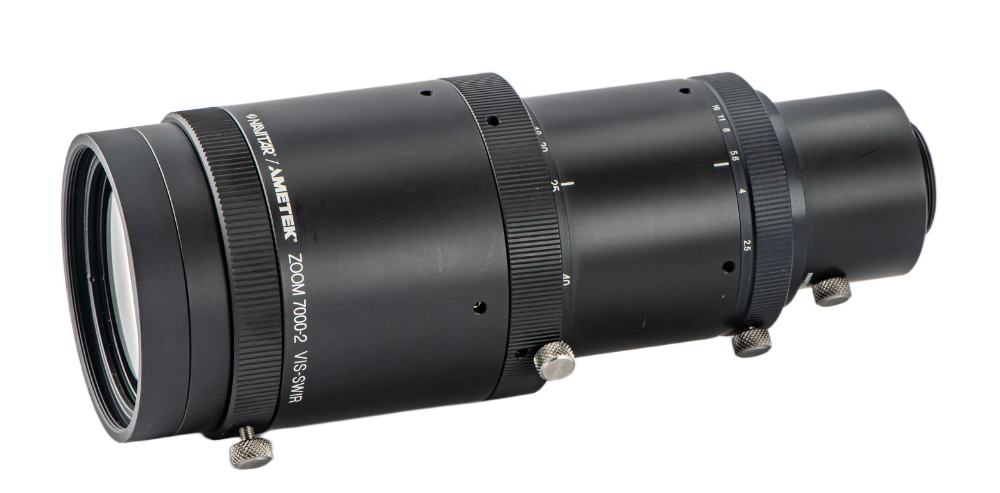

| Wavelength Range: | VIS-SWIR (400nm - 1700nm) |
| Focusing Range (mm): | 127 - ∞ |
| Resolution, Center: | 100 |
| Resolution, Corner: | 60 |
| Distortion (TV) (%): | W 2.3% / T 1.3% |
| Mount: | C-mount |
| Iris Control: | Manual |
| Zoom Control: | Manual |
| Focus Control: | Manual |
| Filter Size (mm): | M58.0 x 0.75 |
| Size (mm): | Ø 67 x 178.2 |
| Weight (g): | 840 |
| Temperature Range: | -10°C - +50°C |
| Horizontal Field of View, 2/3" Sensor | |
| 127mm WD | 8.8mm - 51mm |
| 177mm WD | 13.2mm - 80mm |
| 227mm WD | 17.5mm - 106mm |
| 277mm WD | 21.8mm - 129mm |
| 302mm WD | 24.0mm - 141mm |
| 500mm WD - No Close-up Lens | 34.6mm - 249mm |
| 1000mm WD - No Close-up Lens | 74.6mm - 484mm |
| Applications: | Quality Control, Machine Vision, Biomedical Imaging |
