Moritex MML-SR High Resolution Telecentric Lenses
Large Format Telecentric Imaging with Adjustable Depth of Field

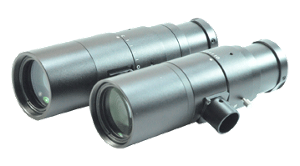

Moritex MML-SR telecentric lenses

Moritex MML-SR high resolution telecentric lenses are designed for precision measurement and industrial inspection applications requiring excellent image detail and minimal distortion. Optimized for 3.5 µm pixels, the series includes models supporting sensors up to 12MP, with multiple magnification and working distance options to accommodate a variety of machine vision requirements.

Moritex offers a comprehensive range of high-performance machine vision lenses, including high resolution C-mount, large format line scan, telecentric and bi-telecentric optics. Designed for industrial inspection, precision measurement and automation applications, Moritex lenses deliver reliable optical performance across a wide range of imaging requirements. Explore our complete selection of Moritex machine vision lenses.


Moritex MML-SR telecentric lens features

  • Optimized for small pixel sizes down to 2.74 µm – 3.5 µm
  • Supports sensors up to 12 MP
  • Image circle up to 18 mm on listed models
  • Magnifications from 0.275x to 4x
  • Working distances of 65–130 mm
  • Adjustable iris for depth-of-field control
  • Very low distortion for precision measurement
Get
Quote
Data
Sheet
Lens
Outline
Drawing
  Main optical specifications Advanced optical specifications
Name Mag. Image to
Object
mm
Max. Image
Circle
mm
Working
Distance
mm
Resolution
[μm] *1
Depth of Field
[mm] *2
NA
Object Side
Aperture
(f/#)
TV distortion
(%)
Download PDFMML0275-SR130VI-18C0.275349.91813019.7~55.98.46~25.160.017~0.0068~22≤0.01
Download datasheetDownload PDFMML033-SR130DVI-18C0.33309.31813011.57~44.734.11~16.160.029~0.0075.6~22≤0.033
Download PDFMML033-SR130VI-18C0.33298.71813011.57~44.734.11~16.160.029~0.0075.6~22≤0.033
Download datasheetDownload PDFMML044-SR130DVI-18C0.44319.1181308.5~24.42.31~6.590.039~0.0145.6~16≤0.004
Download datasheetDownload PDFMML044-SR130VI-18C0.44311.4181308.5~24.42.31~6.590.039~0.0145.6~16≤0.004
Download datasheetDownload PDFMML06-SR110DVI-18C0.6256.5181106.21~23.961.24~4.890.053~0.0135.6~22≤0.005
MML06-SR110VI-18C0.6256.5181106.21~23.961.24~4.890.053~0.0135.6~22≤0.005
Download datasheetDownload PDFMML075-SR110DVI-18C0.75269.9181105.08~19.70.796~3.1290.066~0.0175.6~22≤0.018
Download datasheetDownload PDFMML075-SR110VI-18C0.75269.9181105.08~19.70.796~3.1290.066~0.0175.6~22≤0.018
Download datasheetDownload PDFMML08-SR110DVI-18C0.8274.8181104.72~18.640.7~2.750.071~0.0185.6~22≤0.005
Download datasheetDownload PDFMML08-SR110VI-18C0.8274.8181104.72~18.640.7~2.750.071~0.0185.6~22≤0.005
Download datasheetDownload PDFMML1-SR65DVI-18C1204.218654.7~14.80.56~1.760.071~0.0237~22≤0.003
Download PDFMML1-SR65VI-18C1204.218654.7~14.80.56~1.760.071~0.0237~22≤0.003
Download PDFMML2-SR65DVI-18C2213.318652.7~7.40.16~0.440.125~0.0458~22≤0.005
Download datasheetDownload PDFMML2-SR65VI-18C2213.318652.7~7.40.16~0.440.125~0.0458~22≤0.005
Download datasheetDownload PDFMML3-SR65DVI-18C3235.718652.11~4.930.084~0.1960.159~0.0689.43~22≤0.015
Download datasheetDownload PDFMML3-SR65VI-18C3235.718652.11~4.930.084~0.1960.159~0.0689.43~22≤0.015
Download PDFMML4-SR65DVI-18C4270.618651.99~3.730.059~0.110.169~0.0911.83~22≤0.006
MML4-SR65VI-18C4270.618651.99~3.730.059~0.110.169~0.0911.83~22≤0.006
