Moritex MML-HR-5M 5MP Telecentric Lenses
High Precision Imaging for 5MP Machine Vision Sensors

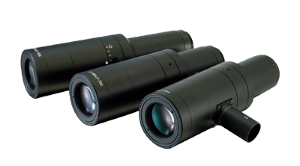

Moritex MML-HR telecentric lenses

Moritex MML-HR-5M telecentric lenses are optimized for 5MP sensors with 3.45 µm pixels, delivering high resolution, low distortion imaging for precision inspection and measurement. Featuring a 110 mm working distance lineup, coaxial illumination options and stray-light reduction technology, these lenses provide excellent image quality for demanding machine vision applications.

Moritex offers a comprehensive range of high-performance machine vision lenses, including high resolution C-mount, large format line scan, telecentric and bi-telecentric optics. Designed for industrial inspection, precision measurement and automation applications, Moritex lenses deliver reliable optical performance across a wide range of imaging requirements. Explore our complete selection of Moritex machine vision lenses.


Moritex MML-HR-5M telecentric lens features

  • Optimized for 5MP, 3.45 µm pixel sensors
  • 110 mm working distance lineup
  • High resolution, low distortion imaging
  • Uniform coaxial illumination options
  • Internal reflection and stray-light reduction
  • Variable iris available on most models
Get
Quote
Data
Sheet
Lens
Outline
Drawing
  Main optical specifications Advanced optical specifications
Name Mag. Image to
Object
mm
Max. Image
Circle
mm
Working
Distance
mm
Resolution
[μm] *1
Depth of Field
[mm] *2
NA
Object Side
Aperture
(f/#)
TV distortion
(%)
Download datasheetDownload PDFMML014-HR110D-5M0.143001111019.316.40.0184≤0.01
Download datasheetDownload PDFMML03-HR110D-5M0.3269.91111015.76.20.0217≤0.02
Download datasheetDownload PDFMML03-HR110-5M0.3269.91111015.76.20.0217≤0.02
Download datasheetDownload PDFMML03-HR65D-5M0.3219.71165.115.76.20.0217≤0.01
Download datasheetDownload PDFMML03-HR65-5M0.3219.71165.115.76.20.0217≤0.01
Download datasheetDownload PDFMML04-HR65-5M0.4210.71165.112.63.750.0277.5≤-0.01
Download datasheetDownload PDFMML05-HR65DVI-5M0.5219.81165.39.3~412.2~9.80.036~0.0087~30.6≤0.01
Download datasheetDownload PDFMML05-HR65VI-5M0.5219.81165.39.3~412.2~9.80.036~0.0087~30.6≤0.01
Download datasheetDownload PDFMML1-HR65DVI-5M1167.511654.7-190.56~2.20.071~0.0187~28≤0.02
Download datasheetDownload PDFMML1-HR65VI-5M1167.511654.7-190.56~2.20.071~0.0187~28≤0.02
Download datasheetDownload PDFMML2-HR65DVI-5M218511652.4-15.30.15~0.90.14~0.0227.3~44.9≤0.04
Download datasheetDownload PDFMML2-HR65VI-5M218511652.4-15.30.15~0.90.14~0.0227.3~44.9≤0.04
Download datasheetDownload PDFMML3-HR65DVI-5M3209.511652.1-10.50.085~0.420.157~0.0329.6~47.5≤0.01
Download datasheetDownload PDFMML3-HR65VI-5M3209.511652.1-10.50.085~0.420.157~0.0329.6~47.5≤0.01
Download datasheetDownload PDFMML4-HR65DVI-5M4225.111652-8.20.06~0.240.167~0.04112.1~48.6≤0.01
Download datasheetDownload PDFMML4-HR65VI-5M4225.111652-8.20.06~0.240.167~0.04112.1~48.6≤0.01
