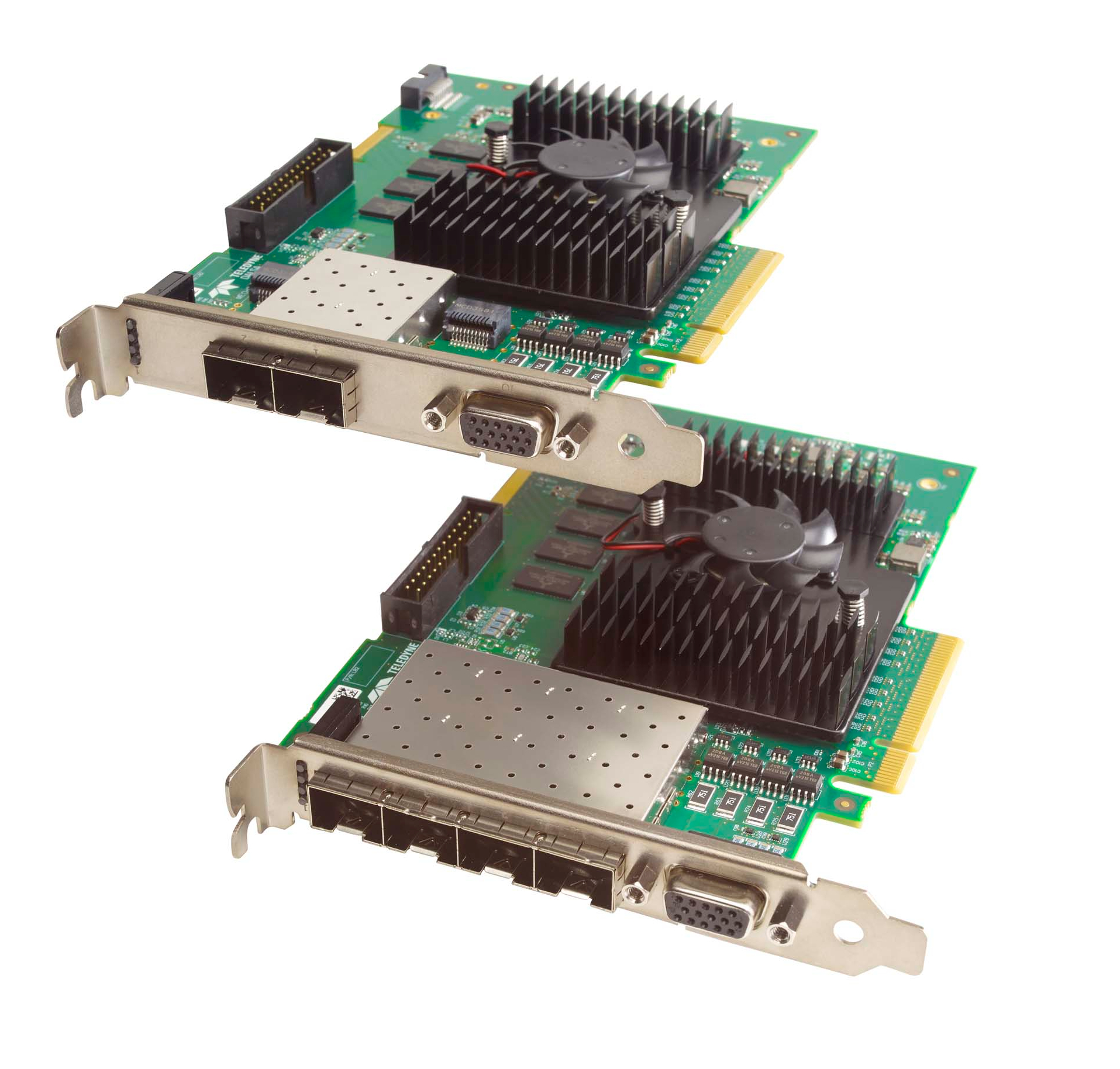

Teledyne DALSA Xtium2-XGV PX8 GigE Frame Grabber

The Teledyne Dalsa Xtium2-XGV PX8 GigE frame grabber is a multi-port 10 GigE image acquisition board that outputs data with a 10 GigE, 5 GigE, 2.5 GigE, or 1-GigE Ethernet link, and is GigE Vision® V1.2 and 2.0 compliant. It is available with a two or four port SFP+ configuration. The half-length PCI Express™ Gen 3.0 x8 board can maintain an input bandwidth of up to 4GByte/s (4x10 Gbs) and transmit image data to the host memory at up to 6.8 GBytes/sec.

The Xtium2-XGV PX8 GigE image acquisition board supports up to 32 area scan cameras, line scan cameras, and 3D sensors. On-board processing features — depacketization converts data packets into images, and on-board image format conversions (Bi-colour to RGB, and Bayer to RGB, etc.) greatly reduce the workload on the host.

The Teledyne DALSA's Sapera LT SDK is a free image acquisition and control toolkit for Teledyne DALSA 2D/3D, GigE, Camera Link, Camera Link HS cameras, and frame grabbers.

Datasheet

Xtium2-XGV PX8 GigE Frame Grabber Features

• Half-length PCIe Gen3 x8 image acquisition board
• Supports up to 32 area scan cameras, line scan cameras, and 3D sensors
• On-board image processing and image format conversions (Bi-colour to RGB, and Bayer to RGB, etc.)
• GigE Vision® V1.2 and 2.0 compliant
• Bandwidth up to 4GByte/s (4x10 Gbs)
• Image transfers up to 6.8 GBytes/sec
• 10 GigE, 5 GigE, 2.5 GigE, 1 GigE compatible
• 512 MB image buffer
• Supports Microsoft® Windows® 10/11 (32/64-bit), WOW64
• FCC, CE, KC, UKCA and ROHS compliant (Pending)

Feature	Specification
Part Number	Quad: OR-A8G0-PXF40: Xtium2-XGV PX8 or Dual: OR-A8G0-PXF20: Xtium2-XGV PX8
Differentiators	10GigE Vision® compatible image acquisition board with real-time depacketization engine
Board Type	PCIe
Host Bus	Half-length, PCIe x8
Board Interface	GigE
Connectors	4 x SFP+ cages with latch (SFP modules not included) 15-pin D-Sub High-density connector — General purpose I/Os (main bracket) 16-pin connector on the board for Board-to-board Sync
Camera Format	Mono8, Mono10, Mono12, Mono14 and Mono16 RGB24 (8-bit/color); RGB32: RGB+Y 8-bit/color/pixel 3D: XZ (CalibratedAC), XZRW (CalibratedACRW, UniformX_Z (RectifiedC)
Pixel Clock	N/A
Camera Control	Comprehensive event notification, Timing control logic for camera trigger, line scan direction and strobe signals. Camera control through GenCP/SFNC, Bit-Error detection and correction.
Frame Buffer	512 MB image buffer
Features	Board Sync
Software	Sapera LT SDK: CamExpert(1D/2D), and Z-Expert(3D), Spinnaker SDK (2D)
OS Support	Windows 10 (64-bit), Windows 11 (64-bit), WoW64
