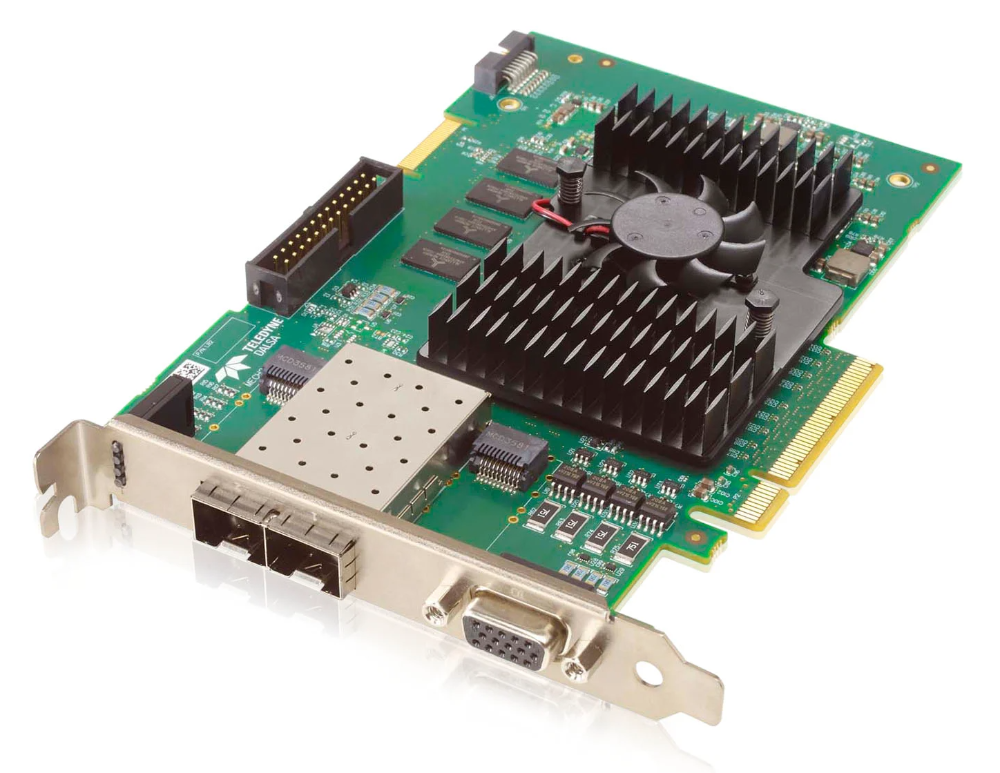

The Teledyne Dalsa Xtium2-XGV Dual frame grabber is a 2 port, 10GigE image acquisition board that outputs data with a 10GigE, 5GigE, 2.5GigE, or 1GigE Ethernet link, and is GigE Vision® V1.2 and 2.0 compliant. The half-length PCI Express™ Gen 3.0 x8 board can maintain an input bandwidth of up to 4 GByte/s (4x10 Gbs) and transmit image data to the host memory at up to 6.8 GBytes/sec.
The Xtium2-XGV Dual image acquisition board supports up to 32 area scan cameras, line scan cameras, and 3D sensors. On-board processing features — depacketization converts data packets into images, and on-board image format conversions (Bi-colour to RGB, and Bayer to RGB, etc.) greatly reduce the workload on the host.
The Teledyne DALSA's Sapera LT SDK is a free image acquisition and control toolkit for Teledyne DALSA 2D/3D, GigE, Camera Link, Camera Link HS cameras, and frame grabbers.
| Feature | Specification |
| Part Number | OR-A8G0-PXF20 |
| Bandwidth | Input from camera(s): up to 2.5 GB/s in frame grabber memory PCIe bus output: up to 7.0 GB/sec sustained (PCIe payload @ 512 bytes) PCIe bus output: up to 6.8 GB/sec sustained (PCIe payload* @ 256 bytes) |
| Board Type | PCIe |
| Host Bus | PCIe Gen3 x 8 slot |
| Board Interface | GigE Vision |
| Connectors | Data input: 2 x SFP+ cages I/O: 1 x DB15 |
| Camera Format | GigE Vision v1.x / v2.x : 10, 5, 2.5 or 1Gbps : up to 32 ports / camera (20 Gbps Effective Data) |
| Transmission Rate | 20.625 Gbps (2 x Up to 10.3125 Gbps ) |
| Bits Per Pixel | Mono: 8, 10, 12, 14 and 16-bit RGB: 8, 10 or 12-bit/pixel/color Bayer: 8, 10 and 12-bit/pixel |
| Camera Control | External trigger input, multi-board sync, camera control through software , PTP and Action Command |
| GPIO | Inputs: 4x opto-coupled lines Outputs: 8x lines |
| Frame Buffer | 2048 MB on-board memory (shared with processing function) |
| Features | Hardware based action command real-time, IEEE1588 (PTP) inter-port re-distribution of PTP messages, packet-offload engine supports, Image Flip ,Data conversion, supports T2IR (Trigger2Image Reliability) framework |
| Software | Sapera LT SDK |
| OS Support | Windows 11 (64-bit) |
| Input Camera Port | 2 ports (up to 32 cameras Total ) |
