Camera Link Line scan camera Teledyne DALSA P4-CC-08K03T Teledyne DALSA P4-CC-08K03T
Camera Link Camera
DALSA Proprietary Sensor
8192x3 Resolution
Line Scan Camera

get a quote for this product

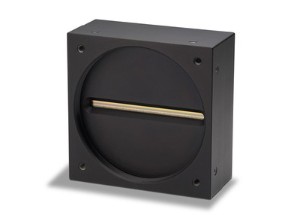

The Teledyne DALSA P4-CC-08K03T color line scan camera features a 61.4mm, 8192x3 resolution, Teledyne DALSA trilinear 8k line scan sensor, 33 kHz, and 7.5 µm pixel size.

Teledyne DALSA Piranha4 line scan cameras feature a camera link interface, GenICam compliance, high frame rates, high dynamic range, and low noise to capture superior images even in low light. Piranha4 cameras are available in a number of architectures that includes: dual line scan monochrome cameras, bilinear color, trilinear color, quadlinear color, and multispectral cameras. Piranha4 line scan cameras are suitable for inspection, sorting, and many other industrial machine vision applications that require the analysis and a capture of objects at high speeds.

Piranha4 Family Features

  • High speed imaging - up to 200kHz
  • Dual line scan monochrome, bilinear color, trilinear color, and quadlinear color line scan sensors
  • Color, monochrome and multispectral cameras
  • GenICam compliant

P4-CC-08K03T Camera Features

  • Teledyne DALSA 8K,192x3 Trilinear line scan sensor
  • 33kHz scan rate
  • 24-bit RGB output
  • 55 dB high dynamic range
Manufacturer: Teledyne DALSA Model: P4-CC-08K03T Total Pixels: 24,576
Resolution: 8192 (h) 3 (v) Sensor Size: 61.4mm Color/B & W: Color
kHz: 33 Sensor Type: CMOS Sensor Device: DALSA Proprietary
Pixel Size(µm): 7.5(h) 7.5(v) A/D Bits: 8 Shutter Speed: 2.6µs to 3000µs
Interface: Camera Link Voltage(VDC): 12-24V Power(watts): 6.5
Lens Mount: M72 Shutter Type: call Weight(grams): 295
S/N Ratio(dB): call External Trigger: Yes Dimensions(mm): 40.1Lx80Wx80H
