Camera Link HS Line scan camera Teledyne DALSA ML-HM-16K30H Teledyne DALSA ML-HM-16K30H
Camera Link HS Camera
DALSA Proprietary Sensor
16384x4 Resolution
Line Scan Camera

get a quote for this product

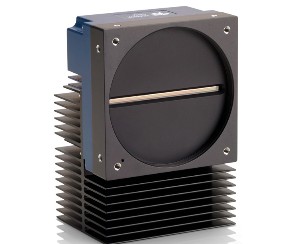

Teledyne DALSA Linea ML ML-HM-16K30H monochrome / HDR line scan camera uses a DALSA Proprietary CMOS sensor and Camera Link HS interface to deliver 150/300kHz scan rate at 16k x 4 high resolution line scan. Features include multi-array charge-domain CMOS TDI, 70dB dynamic range in very compact housings. Tne Linea ML ML-HM-16K30H line scan camera enables scientists and engineers to image objects/subjects in motion with extremely high resolution and accuracy .

Teledyne DALSA Linea line scan cameras are available with a wide variety of interfaces, resolutions, frame rates, pixel sizes and other options.

Linea, Linea2, Linea, Linea Lite, Linea ML Line Scan Cameras Features

  • 2K to 32K resolution
  • Up to 400 kHz scan rate, TurboDrive
  • RGB color, monochrome, NIR, and multispectral options
  • Low cost line scan models

ML-HM-16K30H Camera Features

  • Teledyne DALSA 16,384x4 multiline TDI line scan sensor
  • 150/300kHz scan rate
  • 72dB dynamic range
  • 18 DN/(nJ/cm²) responsivity (8-bit single plane)
Manufacturer: Teledyne DALSA Model: ML-HM-16K30H Total Pixels: 65,536
Resolution: 16384 (h) 4 (v) Sensor Size: 81.9mm Color/B & W: Monochrome
kHz: 150 Sensor Type: CMOS Sensor Device: DALSA Proprietary
Pixel Size(µm): 5(h) 5(v) A/D Bits: 12 Shutter Speed: 3.2µs to 1400µs
Interface: Camera Link HS Voltage(VDC): 12-24V Power(watts): 25
Lens Mount: M90 Shutter Type: call Weight(grams): 1200
S/N Ratio(dB): call External Trigger: Yes Dimensions(mm): 78.6Lx97Wx140.5H
