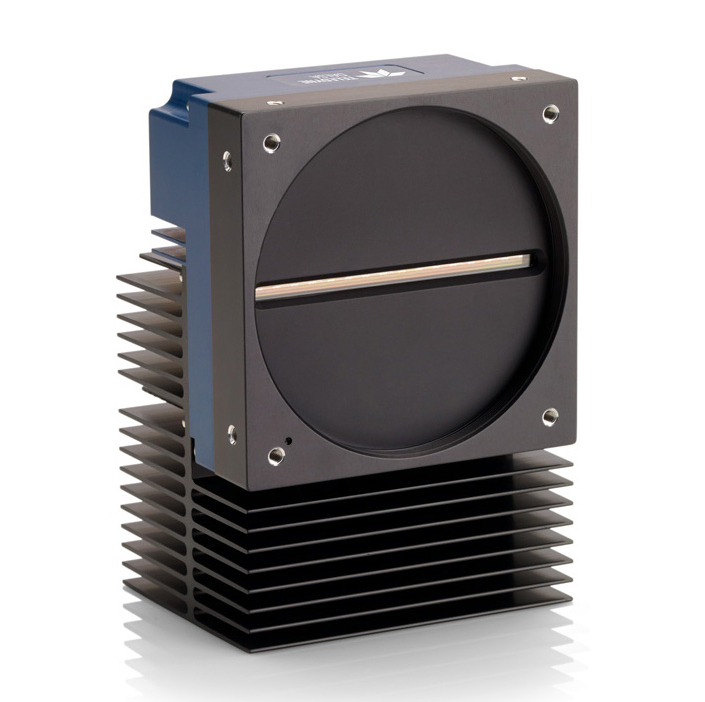

Camera Link HS Fiber Line scan camera Teledyne DALSA ML-FC-16k02T Teledyne DALSA ML-FC-16k02T
Camera Link HS Fiber Camera
DALSA Proprietary Sensor
16384x3 Resolution
Line Scan Camera

get a quote for this product

Teledyne DALSA&rsquot;s Linea ML 16k x 3 high resolution color line scan camera with 12 bit Camera Link HS LC Fiber interface interface is designed for use in ultra-high-speed, industrial surface inspection and scientific scanning. Thanks to spectrally independent RGB and NIR outputs with minimal spectral crosstalk, this camera can detect defects both on and beneath the surface. For inspection applications such as banknotes and other high security prints, the Linea ML 8k multispectral accurately detects security inks printed on the paper that reflect near infrared (NIR) light. In other applications like semiconductor wafer and printed circuit board (PCB) inspection, the camera easily reveals defects below the surface penetrated by the NIR light. Linea ML is Teledyne DALSA&rsquot;s first camera with native fiber optic connectors, which lets you take advantage of low-cost fiber for long cables and immunity to electrical interference.

Linea, Linea2, Linea, Linea Lite, Linea ML, Linea HS, Linea HS2 Line Scan Cameras Features

  • 2K to 32K resolution
  • Up to 1000 kHz scan rate
  • RGB color, monochrome, NIR, and multispectral options
  • Low cost line scan models

ML-FC-16k02T Camera Features

  • 16,384x3 multiline trilinear color CMOS line scan sensor
  • Camera Link HS LC Fiber interface
  • 25kHz scan rate x3 color
  • 17 DN/(nJ/cm2) responsivity (8-bit single plane)
Manufacturer: Teledyne DALSA Model: ML-FC-16k02T Total Pixels: 49,152
Resolution: 16384 (h) 3 (v) Sensor Size: 81.9mm Color/B & W: Color
kHz: 25 Sensor Type: CMOS Sensor Device: DALSA Proprietary
Pixel Size(µm): 5(h) 5(v) A/D Bits: 12 Shutter Speed: 2.4µs to 1400µs
Interface: Camera Link HS Fiber Voltage(VDC): 12-24V Power(watts): 21
Lens Mount: M90 Shutter Type: Global Weight(grams): 1200
S/N Ratio(dB): call External Trigger: Yes Dimensions(mm): 78.6Lx97Wx140.5H
