Teledyne DALSA Dragonfly S USB3 DR-U3-50S4
The Teledyne Vision Solutions Dragonfly DR-U3-50S4 machine vision camera features a Sony IMX568 1/1.8" sensor, global shutter, 2448x2048 resolution, 46 fps, and 2.74 µm pixel size

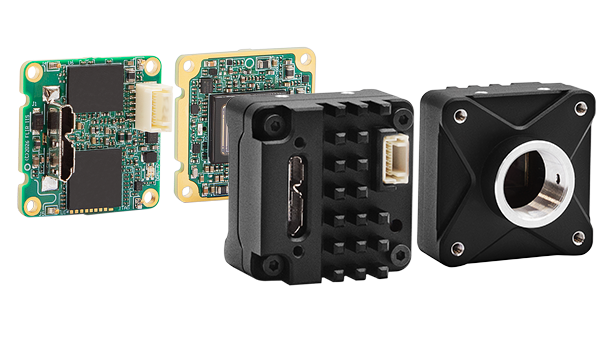

The Dragonfly S DR-U3-50S4 camera is available in a wide range of configuration options, including color or monochrome, rolling or global shutter, board-level or case, side or rear connector configurations, and C, CS, or S mount options:Teledyne Vision Solutions Dragonfly S USB3 machine vision cameras are compact, lightweight, and modular. Built for flexibility and seamless integration, they are ideal for high-volume production and space-constrained OEM systems including medical imaging, factory automation, and embedded vision systems. These cameras provide high-performance and high-quality imaging with low power consumption. Designed for system developers and OEMs, the Dragonfly USB3 cameras deliver scalable deployment and reduced system complexity.
Dragonfly S USB3 Machine Vision Cameras Features
DR-U3-50S4 Camera Features
| Manufacturer: | Teledyne DALSA | Model: | DR-U3-50S4 | Total Pixels: | 5,013,504 |
| Resolution: | 2448 (h) 2048 (v) | Sensor Size: | 1/1.8" | Color/B & W: | Color / Monochrome |
| Frame Rate (fps): | 46 | Sensor Type: | CMOS | Sensor Device: | Sony IMX568 |
| Pixel Size(µm): | 2.74(h) 2.74(v) | A/D Bits: | 12 | Shutter Speed: | 12.0 µs to 2.0 seconds |
| Interface: | USB3 | Voltage(VDC): | 5 V via USB3 interface | Power(watts): | 2.6W maximum |
| Lens Mount: | CS, S | Shutter Type: | Global | Weight(grams): | call |
| S/N Ratio(dB): | call | External Trigger: | Yes | Dimensions(mm): | call |
DR-U3-50S4 Datasheet
