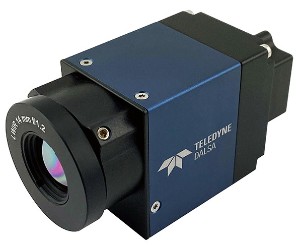

GigE Area scan camera Teledyne DALSA Calibir GX M/F 320 Teledyne DALSA Calibir GX M/F 320
LWIR GigE Camera
DALSA Proprietary Sensor
320x240 Resolution
Area Scan Camera

get a quote for this product

Teledyne DALSA Calibir GXM320 uncooled Long Wave Infrared (LWIR) cameras offer 320x240 resolution at 30 fps with GigEVision and CSI-2 interface options for outstanding LWIR temperature measurement performance and are optimized for Size, Weight and Power (SWAP). The easy-to-use modular design can be integrated into tight spaces for compact, embedded solutions.

Calibir GXM320 thermal cameras are ideal for a wide range of temperature measurement applications up to 1,500 degrees C requiring radiometric calibration in the fields of surveillance and monitoring, defense and security, maintenance and general machine vision. Read more...

Calibir Longwave Infrared (LWIR) Thermal Cameras Features

  • CIF to VGA
  • Radiometric temperature measurement from -25° C to +125° C
  • 6 to 90 degree FOV
  • Uncooled and shutterless for lowest cost LWIR imaging

Calibir GX M/F 320 Camera Features

  • 320x240 LWIR GigE camera
  • DALSA proprietary microbolometer sensor w/6.8mm format and 17µm pixel pitch
  • GigEVision or CSI-2 interface for embedded systems
  • 30 fps at full 320x240 resolution
Manufacturer: Teledyne DALSA Model: Calibir GX M/F 320 Total Pixels: 76,800
Resolution: 320 (h) 240 (v) Sensor Size: 1/2.5" Color/B & W: LWIR
Frame Rate (fps): 30 Sensor Type: Microbolometer Sensor Device: DALSA Proprietary
Pixel Size(µm): 17(h) 17(v) A/D Bits: 21 Shutter Speed: 100µs to 100µs
Interface: GigE Voltage(VDC): 12-24V Power(watts): 3
Lens Mount: M25, lens incl'd Shutter Type: Rolling Weight(grams): 67
S/N Ratio(dB): call External Trigger: Yes Dimensions(mm): 59.5Lx29Wx36H
