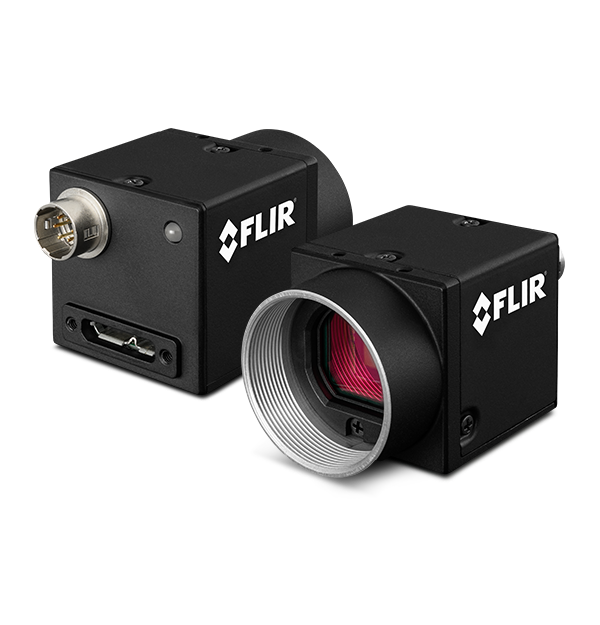

Teledyne DALSA Blackfly S USB3 BFS-U3-120S6
The Blackfly S USB26 BFS-U3-120S6 machine vision camera features a USB3 interface, 12.3 megapixel, Global shutter, Sony IMX545 1/1.1" sensor, 30 fps at full 4000x3000 resolution, and a 2.74 µm pixel size.
Teledyne Vision Solutions Blackfly S USB3 cameras provide high-performance imaging in a compact, cost-effective platform. Built for industrial automation and embedded systems, these USB3 embedded vision cameras feature Sony Pregius, Sony STARVIS, and ON Semi PYTHON sensors with high-speed data transfer and reliable image acquisition.
Blackfly S USB3 Machine vision cameras are available in a wide range of configurations with color, monochrome, and polarization camera options. Their compact, "ice cube" size and superior performance make these industrial machine vision USB cameras ideal for OEMs and scalable vision solutions.
Teledyne DALSA is part of the Teledyne Vision Solutions group, an umbrella organization formed by Teledyne Technologies to unify its machine vision brands.
Blackfly S USB3 Machine Vision Cameras for High-Speed Industrial Vision Features
BFS-U3-120S6 Camera Features
| Manufacturer: | Teledyne DALSA | Model: | BFS-U3-120S6 | Total Pixels: | 12,288,000 |
| Resolution: | 4096 (h) 3000 (v) | Sensor Size: | 1/1.1" | Color/B & W: | Color / Monochrome |
| Frame Rate (fps): | 30 | Sensor Type: | CMOS | Sensor Device: | Sony IMX545 |
| Pixel Size(µm): | 2.74(h) 2.74(v) | A/D Bits: | 12 | Shutter Speed: | 14 µs to 30 s |
| Interface: | USB3 | Voltage(VDC): | 8 - 24 V GPIO / 5 V USB3 | Power(watts): | 4.2W |
| Lens Mount: | C | Shutter Type: | Global | Weight(grams): | 53 |
| S/N Ratio(dB): | call | External Trigger: | Yes | Dimensions(mm): | 39Lx29Wx29H |
BFS-U3-120S6 Datasheet
