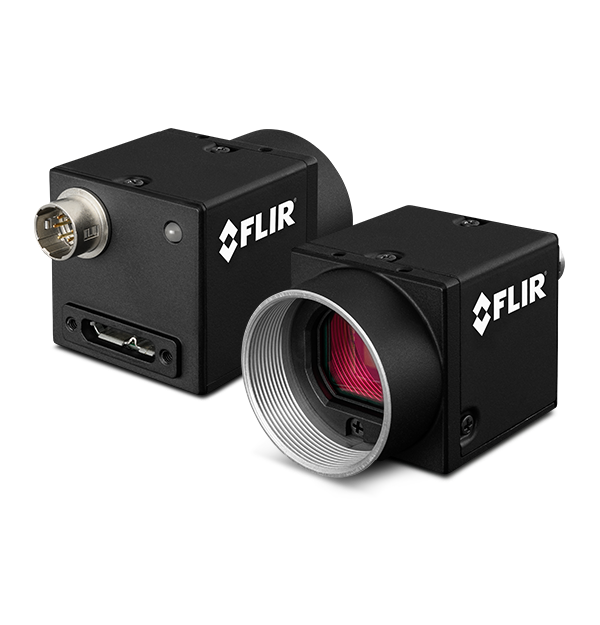

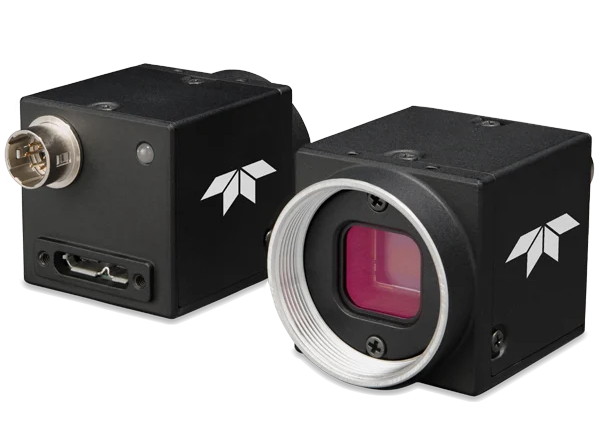

Teledyne DALSA Blackfly S USB3 BFS-U3-04S2
The Blackfly S USB3 BFS-U3-04S2 machine vision camera features a USB3 interface, 0.4 megapixel, Global shutter, Sony IMX287 1/2.9" sensor, 522 fps at full 720x540 resolution, and a 6.9 µm pixel size.
Teledyne Vision Solutions Blackfly S USB3 cameras provide high-performance imaging in a compact, cost-effective platform. Built for industrial automation and embedded systems, these USB3 embedded vision cameras feature Sony Pregius, Sony STARVIS, and ON Semi PYTHON sensors with high-speed data transfer for reliable image acquisition.
Blackfly S USB3 Machine vision cameras are available in a wide range of configurations with color, monochrome, and polarization camera options. Their compact, "ice cube" size and superior performance make these industrial machine vision USB cameras ideal for OEMs and scalable vision solutions.
Teledyne DALSA is part of the Teledyne Vision Solutions group, an umbrella organization formed by Teledyne Technologies to unify its machine vision brands.
Blackfly S USB3 Machine Vision Cameras for High-Speed Industrial Vision Features
BFS-U3-04S2 Camera Features
| Manufacturer: | Teledyne DALSA | Model: | BFS-U3-04S2 | Total Pixels: | 388,800 |
| Resolution: | 720 (h) 540 (v) | Sensor Size: | 1/2.9" | Color/B & W: | Color / Monochrome |
| Frame Rate (fps): | 522 | Sensor Type: | CMOS | Sensor Device: | Sony IMX287 |
| Pixel Size(µm): | 6.9(h) 6.9(v) | A/D Bits: | 12 | Shutter Speed: | 4 µs to 30 s |
| Interface: | USB3 | Voltage(VDC): | 8 - 24 V GPIO / 5 V USB3 | Power(watts): | 3W |
| Lens Mount: | C,CS | Shutter Type: | Global | Weight(grams): | 36 |
| S/N Ratio(dB): | call | External Trigger: | Yes | Dimensions(mm): | 30Lx29Wx29H |
BFS-U3-04S2 Datasheet
