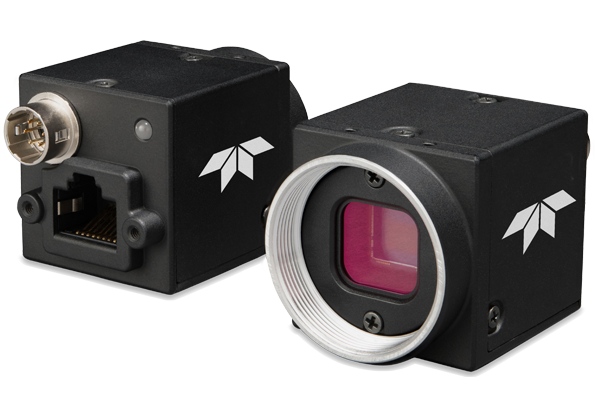

Teledyne DALSA Blackfly S GigE BFS-PGE-50Y2
The Teledyne Blackfly S GigE BFS-PGE-50Y2 machine vision camera features a GigE interface, 5 megapixel, Global shutter, Sony AR0521 1/2.5" sensor, 24 fps at full 2592x1944 resolution, and a 2.2 µm pixel size.
Blackfly S GigE cameras are high-performance, compact machine vision cameras engineered for dependable high-speed data acquisition, seamless system integration, and extended data transmission distances. These industrial cameras, which are fully GigE Vision compliant, offer a broad selection of Sony Pregius, Sony STARVIS and ON Semi sensors including monochrome, color, and polarization cameras. Blackfly S GigE cameras are an excellent choice for various applications such as scientific imaging, logistics, robotics, and inspection.
Full compliance with GigE Vision standards enables easy integration with the GenICam-compliant Teledyne Spinnaker, and other third-party software, and streamlines application development and deployment.
Teledyne Blackfly S GigE Machine Vision Cameras for Industrial Imaging Features
BFS-PGE-50Y2 Camera Features
| Manufacturer: | Teledyne DALSA | Model: | BFS-PGE-50Y2 | Total Pixels: | 5,038,848 |
| Resolution: | 2592 (h) 1944 (v) | Sensor Size: | 1/2.5" | Color/B & W: | Color / Monochrome |
| Frame Rate (fps): | 24 | Sensor Type: | CMOS | Sensor Device: | Sony AR0521 |
| Pixel Size(µm): | 2.2(h) 2.2(v) | A/D Bits: | 12 | Shutter Speed: | 9 µs to 0.58 seconds |
| Interface: | GigE | Voltage(VDC): | PoE / 8 - 24 V | Power(watts): | 3.5W |
| Lens Mount: | CS | Shutter Type: | Global | Weight(grams): | 36 |
| S/N Ratio(dB): | call | External Trigger: | Yes | Dimensions(mm): | 30Lx29Wx29H |
BFS-PGE-50Y2 Datasheet
