JAI WAL-1001-GE

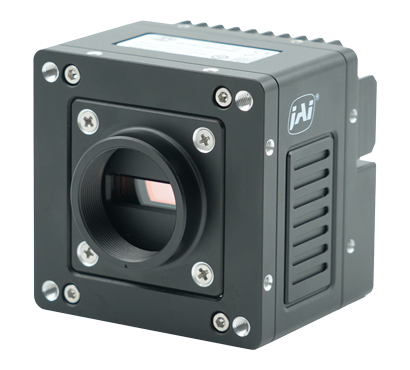

The JAI WAL-1001-GE is a compact GigE 1K SWIR line scan camera with an InGaAs sensor designed for high-speed industrial inspection using a high-sensitivity InGaAs sensor. Featuring a GigE Vision interface, 1024x1 resolution, large 12.5µm pixels, and line rates up to 29 kHz, the Wave WAL-1001-GE camera delivers outstanding image quality for food inspection, semiconductor manufacturing, recycling, agricultural sorting, and material analysis. Its standard C-mount and GigE Vision compatibility simplify integration into new and existing machine vision systems.
JAI Wave SWIR cameras are designed for high-speed industrial machine vision applications such as inspection, sorting, and moisture analysis. They are available in various configurations that includes area and line scan cameras, GigE or Camera Link interfaces, multispectral or monochrome, SWIR and Visible + SWIR models.
JAI Wave SWIR Area Scan & Line Scan Cameras Features
WAL-1001-GE Camera Features
| Manufacturer: | JAI | Model: | WAL-1001-GE | Total Pixels: | 1,024 |
| Resolution: | 1024 (h) 1 (v) | Sensor Size: | 12.8mm | Color/B & W: | SWIR |
| kHz: | 29 | Sensor Type: | InGaAs | Sensor Device: | Proprietary |
| Pixel Size(µm): | 12.5(h) 12.5(v) | A/D Bits: | 14 | Shutter Speed: | 2 µs ~ 9992 µs |
| Interface: | GigE | Voltage(VDC): | 12 to 24V DC / PoE not supported | Power(watts): | 4.3 W |
| Lens Mount: | C | Shutter Type: | Global | Weight(grams): | 309 |
| S/N Ratio(dB): | call | External Trigger: | Yes | Dimensions(mm): | 60Lx60Wx57.6H |
WAL-1001-GE Datasheet
