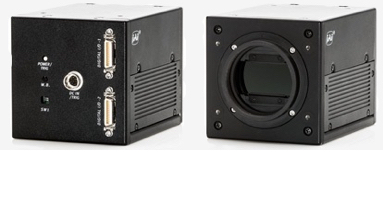

Camera Link Line scan camera JAI/Pulnix WA-1000D CL
JAI/Pulnix WA-1000D CL
Multispectral Camera Link Camera
Proprietary Sensor
1024x2 Resolution
Line Scan Camera

get a quote for this product

The Wave Series cameras are prism-based line scan cameras capable of sensing Short Wave InfraRed (SWIR) light

JAI Wave SWIR Line Scan Cameras

    • 1024 x 2
    • 25.6mm InGaAs sensor, prism-based for high precision
    • Up to 39 kHz scan rate
    • Up to 25um pixel size for high sensitivity

WA-1000D CL Features

  • SWIR line scan
  • Excellent sensitivity
Manufacturer: JAI/Pulnix Model: WA-1000D CL Total Pixels: 2,048
Resolution: 1,024 (h) 2 (v) Sensor Size(inch): 25.6mm Color/B & W: Multispectral
Frame Rate(fps): 39 Sensor Type: InGaAs Sensor Device: Proprietary
Pixel Size(µm): 25(h) 25(v) A/D Bits: 12 Shutter Speed(µs): 20.38(min)/1995(max)
Interface: Camera Link Voltage(VDC): 12-24 Power(watts): 9
Lens Mount: M52 Shutter Type: Global Weight(grams): 910
S/N Ratio(dB): call External Trigger: Yes Dimensions(mm): 90Lx90Wx117H
