Camera Link Area scan camera Allied Vision Goldeye CL-034 XSWIR 2.2 TEC2 Allied Vision Goldeye CL-034 XSWIR 2.2 TEC2
Camera Link Camera
Proprietary Sensor
636x508 Resolution
Area Scan Camera

get a quote for this product

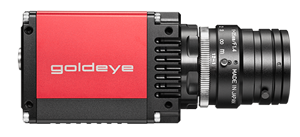

The Allied Vision CL-034 XSWIR 2.2 TEC2 Camera Link SWIR camera features an extended Range InGaAs sensor with a 1200 nm to 2200 nm spectral range, a very high frame rate of 303 fps, high dynamic range, and on-board image correction to produce outstanding images. The integrated dual-stage sensor cooling maintains an acceptable temperature range to produce low-noise images and improve the overall sensor performance.

Goldeye XSWIR cameras with extended sensitivity in the visible spectrum down to 400 nm or up to 2200 nm enable additional imaging and sensing capabilities in industrial applications such as, food quality sorting, moisture detection, laser beam profiling, cell analysis in bioimaging, and pharmaceutical process control.

All Allied Vision Goldeye SWIR cameras and XSWIR cameras have a robust compact design, GigE or Camera Link interfaces, comprehensive I/O control options, and produce outstanding low-noise images. All Allied Vision cameras work with the free (with camera purchase) and easy to use with the Allied Vision Vimba SDK.

Goldeye Short wave infrared (SWIR) InGaAs Cameras Features

  • Spectral range 400 - 1700 nm (SWIR)
  • Extended spectral range 400 - 2200 nm (XSWIR)
  • Up to 344 fps
  • InGaAs SWIR sensors

Goldeye CL-034 XSWIR 2.2 TEC2 Camera Features

  • Extended spectral range 1200 nm to 2200 nm
  • Short-wave infrared (SWIR) camera
  • Camera link interface
  • Very high frame rates - 303 fps
Manufacturer: Allied Vision Model: Goldeye CL-034 XSWIR 2.2 TEC2 Total Pixels: 323,088
Resolution: 636 (h) 508 (v) Sensor Size: 12.2mm Color/B & W: SWIR
Frame Rate (fps): 303 Sensor Type: InGaAs Sensor Device: Proprietary
Pixel Size(µm): 15(h) 15(v) A/D Bits: 14 Shutter Speed: 1 µs to 10 ms
Interface: Camera Link Voltage(VDC): 10.8 V to 30.0 V Power(watts): 21
Lens Mount: C Shutter Type: Global Weight(grams): 740
S/N Ratio(dB): call External Trigger: Yes Dimensions(mm): 90Lx80Wx80H
