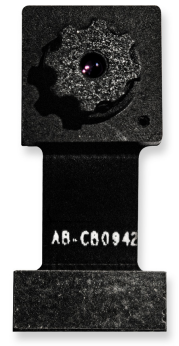

Prophesee Metavision® GenX320 CN1 Compact Optical Module

The Prophesee Metavision® GenX320 CN1 Compact Optical Module GenX320 CN1 possesses all of the features that apply to all GenX320 Compact Optical Modules. In addition, the GenX320 CN1 optical moudle's specific features include a 47.6° HFOV (Horizontal Field of View (HFoV) and Vertical Field of View (VFoV), 80.5° Diagonal Field of View (DFoV) M5 lens mounted using a threaded lens holder, 20 connector pins, MIPI data interface, and an IR cut filter. Refer to the GenX320 Compact Optical Modules Overview to see a comparison chart for all GenX320 optical modules.

GenX320 Compact Optical Modules, bundled with a flex and Hirose board-to-board connector, are an optimal solution for a wide range of embedded Event-Based Vision applications. Central to the GenX320 optical modules is Prophesee’s GenX320 Metavision® Event-Based Vision Sensor (EVS), a 320x320 1/5" format 6.3µm pixel BSI stacked event-based sensor - the smallest (ultra-compact 3x4mm format) and most power-efficient (microwatt power levels) Event-Based Vision sensor.

These cutting-edge event-based optical modules are designed to provide easier integration and usability for event-based vision systems. They include essential components and functions, such as event data pre-processing, formatting, data interface compatibility, and low-latency connectivity to diverse processing platforms, including modern low-power, neuromorphic processors.

Event-Based Vision (EVS) sensors and neuromorphic engineering technology have overcome the limits encountered with traditional machine vision technology, and enabled many exciting applications to be developed including object tracking, fall detection, eye tracking, gesture recognition, constellation tracking, motion analysis, and vibration tracking. Check out these Event-Based Vision System applications in action.
