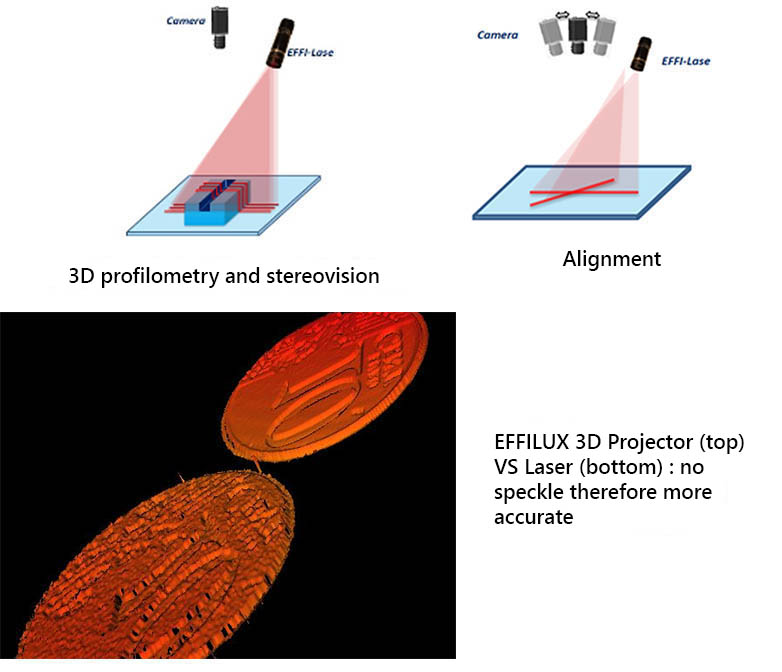

The Effilux 3D LED based structured pattern projectors produce powerful, uniform illumination very fine patterns that include line, cross, and dot patterns. Compared to laser sources, LED based pattern projectors provides the same accuracy, power and homogeneity with superior uniformity, sharpness, eye safety, and accuracy without speckle. Effilux 3D laser profilers are ideal for industrial applications such as 3D profilometry (a technique used to extract topographical data from a surface), steriovision, and alignment.
See the entire selection of Effilux LED lighting for machine vision.

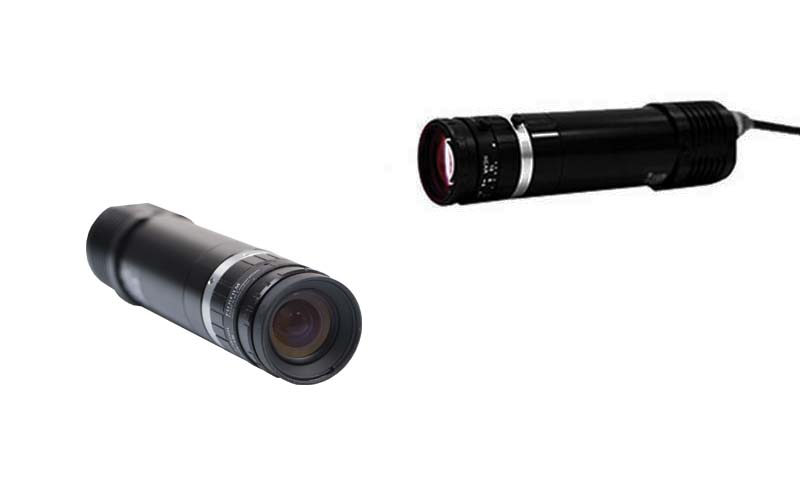

The Effilux EFFI-Lase 3D pattern projector is a structured LED light that produces very intense uniform light, very fine patterns including line, cross, and dot patterns. They are available in a full range of colors (blue, green, red, IR, UV, and white). The EFFI-Lase 3D laser profilers is compatible with C-Mount projection lenses. There are 2 versions of the EFFI-Lase - the standard version and the power version.

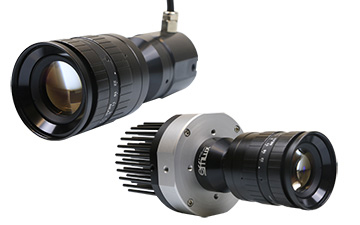

The Effilux EFFI-Lase V2 3D pattern projector light is a powerful LED structured light with interchangeable masks. It produces uniform light and very fine line, cross, clouds of points and other patterns. It's compatible with C-Mount projection lenses. The EFFI-Lase V2 is 15 times more powerful than the EFFI-Lase.
There are 2 different version of the EFFI-Lase V2. The passive dissapation version (EFFI-Lase-PSV) features passive cooling and an integrated driver. The compact version (EFFI-Lase-CPT) features a compact body with direct current. Both versions are available in a full range of colors (blue, green, red, IR, UV, and white).
The Effilux EFFI-Lase V3 3D pattern projector is an ultra high power structured lighting LED pattern projector light width a wide depth of field that produces uniform illumination with high contrast and no speckle. The interchangeable masks are precisely engraved. There are several types of masks available to produce patterns for body scanning, 3D profiling and stereovision. The EFFI-Lase V3 is compatible with E-Mount projection lenses.
