IDS peak 2.15.0 / uEye+ firmware 3.50

IDS Peak comfortSDK, genericSDK, IPL, and AFL developer manuals are external documents. Please contact us if you need them.

The IDS peak Cockpit program demonstrates the functionality and performance of the IDS industrial cameras. IDS peak Cockpit uses the IDS peak programming library and provides access to all important camera settings and functions. In addition to controlling and parameterizing the cameras, images can be captured or saved to a file.

Start the IDS peak Cockpit under Windows as follows:

•Start > All Programs > IDS > IDS peak > IDS peak Cockpit

•Program icon on the desktop or in the quick launch bar

Start the IDS peak Cockpit under Linux as follows:

•Debian package: menu item "IDS peak Cockpit"

•TAR archive shell script in the "bin" directory

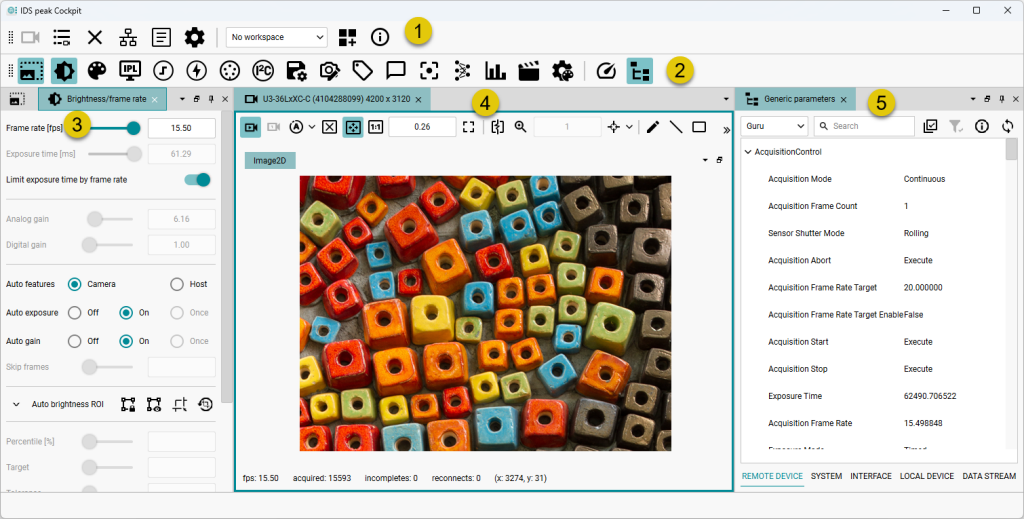

1.Main menu

2.Tool menu

3.Dialog window of the camera

4.Camera window with camera menu

5.Generic parameters

At program start, select a profile that you want to use in the IDS peak Cockpit.
