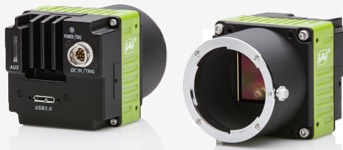

JAI/Pulnix SP-20000M-USB | SP-200000C-USB
USB 3.0 Camera
CMOSIS CMV20000 Sensor
5120x3840 Resolution
Area Scan Camera
JAI Spark Series Industrial Cameras
- 5 to 20MP
- 1" to 1.7" format CCD
- 20MP @ 30 fps, 5MP @ 250 fps, VGA @ 888 fps
- Vibration 10G, Shock 80G
SP-20000M-USB | SP-200000C-USB Features
- Large 41mm diagonal CMOSIS sensor with global shutter
- Ultra high resolution and high speed
- In-camera CMOS pattern correction
- F-mount lens mount
SP-20000M-USB | SP-200000C-USB Datasheet
SP-20000M-USB | SP-200000C-USB Manual
Sensor Spec
All JAI/Pulnix Camera
| Manufacturer: | JAI/Pulnix | Model: |
SP-20000M-USB SP-200000C-USB |
Total Pixels: | 19,660,800 |
| Resolution: | 5,120 (h) 3,840 (v) | Sensor Size(inch): | 41mm | Color/B & W: | Color / Monochrome |
| Frame Rate(fps): | 16 | Sensor Type: | CMOS | Sensor Device: | CMOSIS CMV20000 |
| Pixel Size(µm): | 6.4(h) 6.4(v) | A/D Bits: | 12 | Shutter Speed(µs): | 299(min)/8000000(max) |
| Interface: | USB 3.0 | Voltage(VDC): | 12-24V | Power(watts): | 5.4 |
| Lens Mount: | F | Shutter Type: | Global | Weight(grams): | 320 |
| S/N Ratio(dB): | call | External Trigger: | YES | Dimensions(mm): | 84.5Lx62Wx62H |
