Overview of image capture modes

Scroll Previous Top Next More

Image capture	Capture mode	Function calls	Allowed flash modes		Frame rate
Image capture	Capture mode	Function calls	Standard	Global Start	Frame rate
Continuous	Freerun	is_SetExternalTrigger (OFF) is_CaptureVideo()	X		Freely selectable
	Software trigger	is_SetExternalTrigger (SOFTWARE) is_CaptureVideo()	X	X	Depending on exposure time and trigger delay
	Hardware trigger	is_SetExternalTrigger (e.g. HI_LO) is_CaptureVideo()	X	X	Depending on exposure time and trigger delay
	Hardware trigger (freerun synchronisation)	is_SetExternalTrigger (e.g. HI_LO_SYNC) is_CaptureVideo()	X		Freely selectable
Single frame	Freerun	is_SetExternalTrigger (OFF) is_FreezeVideo()			Freely selectable
	Software trigger	is_SetExternalTrigger (SOFTWARE) is_FreezeVideo()	X	X	Depending on exposure time and trigger delay
	Hardware trigger	is_SetExternalTrigger (e.g. HI_LO) is_FreezeVideo()	X	X	Depending on exposure time and trigger delay

•Image capture in freerun mode

•Image capture in trigger mode

•Timeout values for image capture

Flowchart: Single Capture

Click in the figure to get help on the functions.

flowchart-single-frame-acquisition

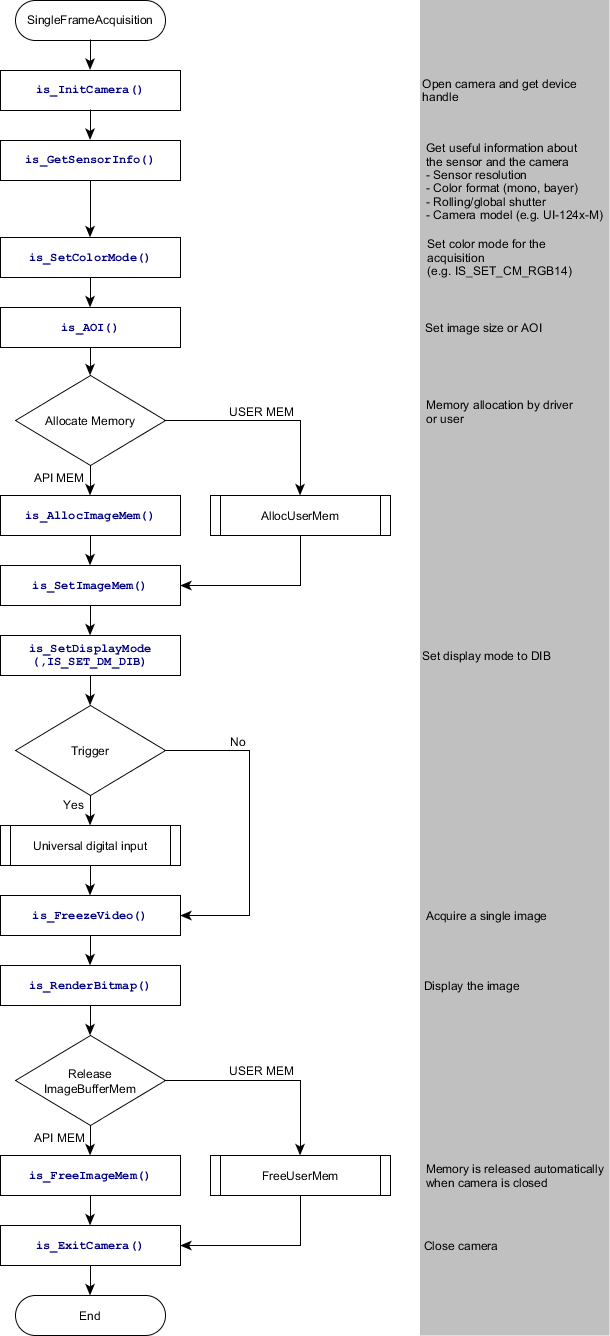

Fig. 178: Flowchart - Capturing a single frame

Flowchart: Sequence Capture

flowchart-multiple-frame-acquisition

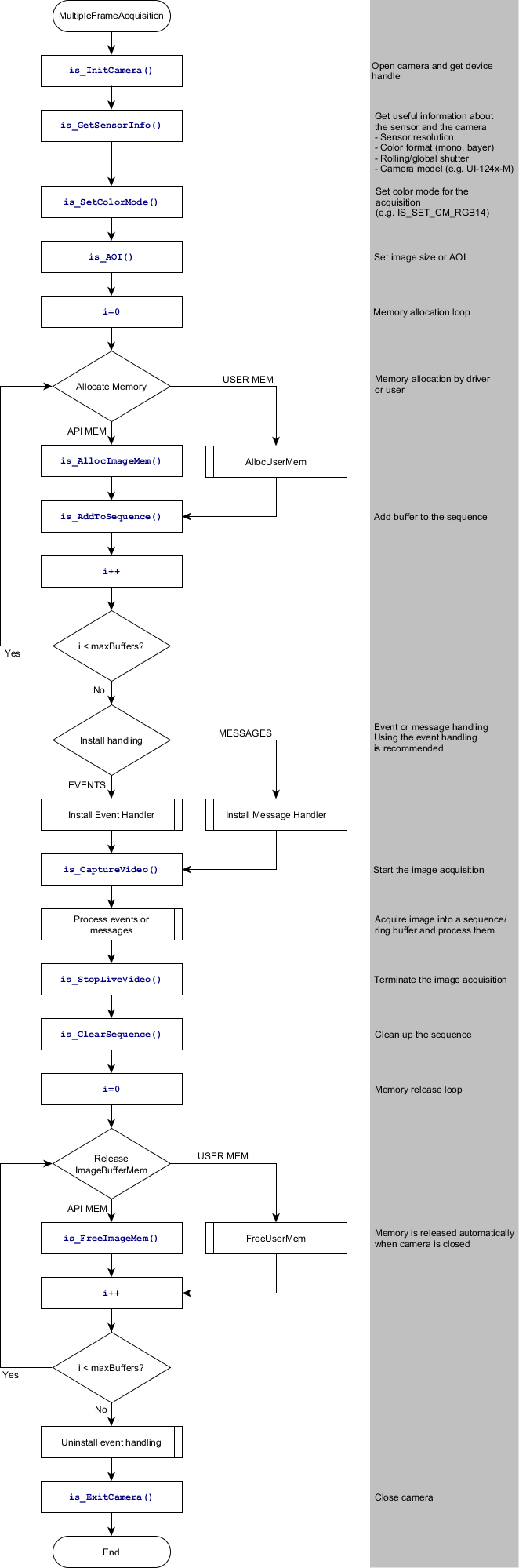

Fig. 179: Flowchart - Capturing a frame sequence
