Tamron 50mm megapixel machine vision lens


lens matrix | extension tubes | fov calculator | megapixel | OEM | Fujinon | Tamron
Click Here for Detailed Specification Sheets and Catalog

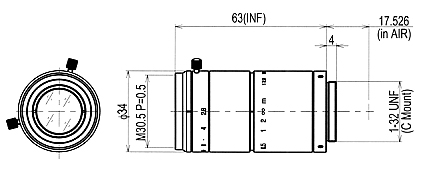

SPECIFICATIONS
Focal Length 50mm
Iris Range F/2.8 to 32
Iris Operation Manual with Lock
Focus Operation Manual with Lock
Mount C
1/3" Angle of View 5.5° x 4.1 °
1/2" Angle of View 7.3° x 5.5 °
2/3" Angle of View 10.1°x 7.6 °
Effective Diameter (Front/Rear Lens) Ø18.5mm/Ø14.9mm
Minimum Object Distance 0.20m
Back Focus 34.46mm (in air)
Filter Size M30.5 P=0.5
Maximum Diameter ø34mm
Overall Length 77.5mm
Weight 117g
