Tamron 50mm machine vision lens


lens matrix | extension tubes | fov calculator | megapixel | OEM | Fujinon | Tamron
Click Here for Detailed Specification Sheets and Catalog

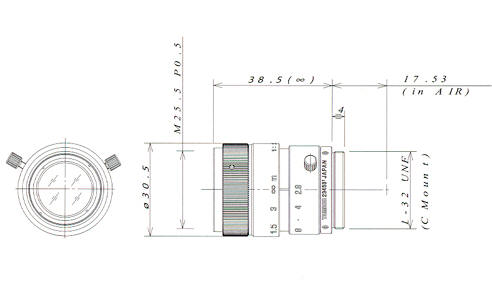

SPECIFICATIONS
Focal Length 50mm
Iris Range F/2.8 to 22
Iris Operation Manual with Lock
Focus Operation Manual with Lock
Mount C
1/3" Angle of View 5.5° x 4.1°
1/2" Angle of View 7.3° x 5.5°
2/3" Angle of View 10.0°x 7.5°
Effective Diameter (Front/Rear Lens) Ø17.5mm/Ø10.8mm
Minimum Object Distance 17.3 in. (0.44m)
Back Focus 22.10mm (in air)
Filter Size M25.5 P=0.5
Maximum Diameter ø1.2 in. (ø30.5mm)
Overall Length 1.5 in. (38.5mm)
Weight 1.9 oz. (52 grams)
