Tamron 25mm megapixel machine vision lens


lens matrix | extension tubes | fov calculator | megapixel | OEM | Fujinon | Tamron
Click Here for Detailed Specification Sheets and Catalog

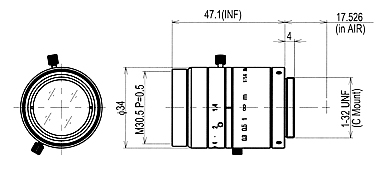

SPECIFICATIONS
Focal Length 25mm
Iris Range F/1.4 to 22
Iris Operation Manual with Lock
Focus Operation Manual with Lock
Mount C
1/3" Angle of View 11.0° x 8.2 °
1/2" Angle of View 14.6° x 11.0°
2/3" Angle of View 20.0°x 15.1 °
Effective Diameter (Front/Rear Lens) Ø23.5mm/Ø16.5mm
Minimum Object Distance 0.15m
Back Focus 17.17mm (in air)
Filter Size M30.5 P=0.5
Maximum Diameter ø34mm
Overall Length 52.2mm
Weight 103g
