Tamron 25mm machine vision lens


lens matrix | extension tubes | fov calculator | megapixel | OEM | Fujinon | Tamron
Click Here for Detailed Specification Sheets and Catalog

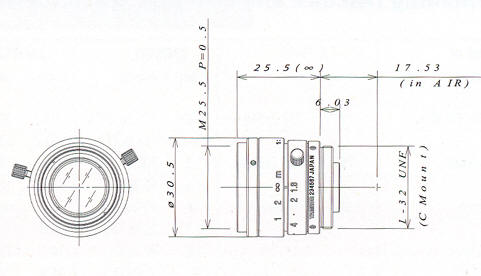

SPECIFICATIONS
Focal Length 25mm
Iris Range F/1.6 to 16
Iris Operation Manual with Lock
Focus Operation Manual with Lock
Mount C
1/3" Angle of View 11.0° x 8.2°
1/2" Angle of View 14.6° x 11.0°
2/3" Angle of View 20.0°x 15.0°
Effective Diameter (Front/Rear Lens) Ø16.0mm/Ø10.8mm
Minimum Object Distance 8.3 in. (0.21m)
Back Focus 11.60mm (in air)
Filter Size M25.5 P=0.5
Maximum Diameter ø1.1 in. (ø29mm)
Overall Length 1.0 in. (25.5mm)
Weight 1.4 oz. (40 grams)
