Tamron 12mm machine vision lens


lens matrix | extension tubes | fov calculator | megapixel | OEM | Fujinon | Tamron
Click Here for Detailed Specification Sheets and Catalog

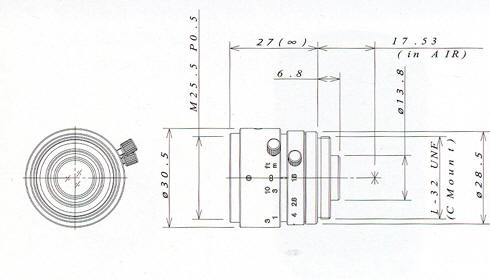

SPECIFICATIONS
Focal Length 12mm
Iris Range F/1.8 to 16
Iris Operation Manual with lock
Focus Operation Manual with lock
Mount C
1/3" Angle of View 22.4° x 16.6°
1/2" Angle of View 30.0° x 22.4°
2/3" Angle of View 40.9°x 30.9°
Effective Diameter (Front/Rear Lens) Ø11.7mm/Ø8.0mm
Minimum Object Distance 10.2 in. (0.26m)
Back Focus 11.03mm (in air)
Filter Size M25.5 P=0.5
Maximum Diameter ø1.1 in. (ø29mm)
Overall Length 1.1 in. (27mm)
Weight 1.4 oz. (40 grams
