Camelot DSP USB Cameras

Imaging Diagnostics Camelot DSP Cameras with USB, Ethernet, or SDIO outputs

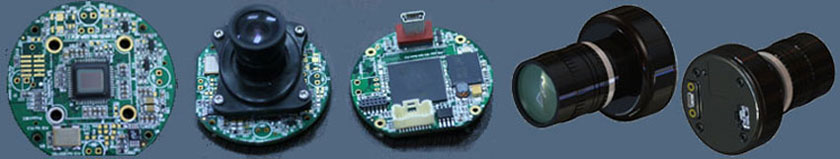

Cased or board versions with C/CS or S mount lens options Analog Device Blackfin 533 MHz DSP Realtime on camera image processing Custom FOV, LUT, and sub sampling

WVGA - 10 MP Aptina Sensors USB/Ethernet/SDIO output options No OS needed for embedded applications Windows drivers with Direct Show support

Datasheet/Manual/Software

Model*	Interface**	H Res	V Res	Bits	FPS***	Sensor	Sensor Size
ID-CAMBU-036-M/C	USB/Enet/SDIO	752	480	10	60	Aptina MT9V032	1/3
ID-CAMBU-1000-M/C	USB/Enet/SDIO	3840	2760	12	4	Aptina MT9J003	1/2
ID-CAMBU-131-M	USB/Enet/SDIO	1280	1024	10	30	Aptina MT9M001	1/2
ID-CAMBU-314-C	USB/Enet/SDIO	2048	1536	10	12	Aptina MT9T031	1/2
ID-CAMBU-491-M/C	USB/Enet/SDIO	2560	1920	12	8	Aptina MT9P031	1/2

*Model Abbreviations designate camera is available in B-Monochrome, M-Monochrome, C-Color, M/C-Monochrome or Color
**Interface - Firewire cameras = 1394 , Camera Link cameras = Cam Link, USB2.0 cameras = USB, Gigabit Ethernet (GigE, GigeVision) = GigE
***FPS - Frames Per Second
