IMD 500 Series DSP Cameras

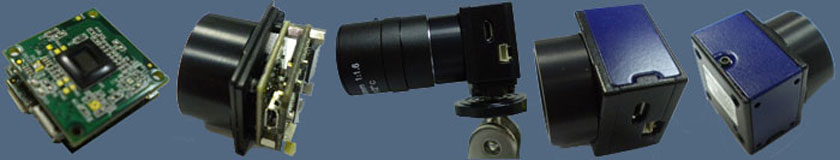

Imaging Diagnostics IMD 500 Series DSP Cameras with USB output

Standard USB output WVGA, 5MP, 10 MP models Aptina CMOS mono and color sensors Analog devices BF524 DSP

16 MByte SDRAM 5 GPIOs (Including Trigger & Strobe) Board level options

Datasheet/Manual/Software

Model*	Interface**	H Res	V Res	Bits	FPS***	Sensor	Sensor Size
IMD-500U-036-M/C	USB	752	480	10	60	Aptina MT9V032	1/3
IMD-500U-1000-M/C	USB	3840	2760	10	4	Aptina MT9J003	1/2
IMD-500U-491-M/C	USB	2560	1920	12	8	Aptina MT9P031	1/2

*Model Abbreviations designate camera is available in B-Monochrome, M-Monochrome, C-Color, M/C-Monochrome or Color
**Interface - Firewire cameras = 1394 , Camera Link cameras = Cam Link, USB2.0 cameras = USB, Gigabit Ethernet (GigE, GigeVision) = GigE
***FPS - Frames Per Second
