AVT Firewire Cameras

As one of the biggest manufacturers of firewire (1394) cameras, AVT (Allied Vision Tec) supplies high-end cameras and components for science, medicine technology, the producing industry, machine manufacturers, system integrators, image processors and dealers.

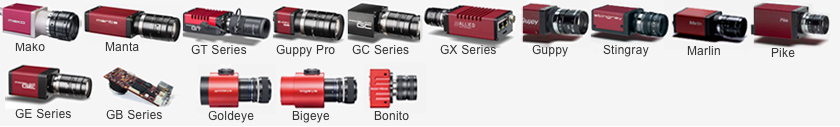

Additionally, AVT is well-known for modifications and customized casings, optics, lighting and cables. AVT sells the Guppy, Marlin, Oscar, Dolphin, and Pike product line of firewire cameras

Stingray Camera Features

• VGA to 2 M pixel	• Small size, 29 x 44 x 74 mm
• Firewire B	• On board Memory
• 2 opto input, 4 opto output	• Asynch/Delay/broadcast Trigger
• On board Bayer decode	• 2-8X binning
• LUTs, shading & color correction	• 232 control

Vendor	Model*	Interface**	H Res	V Res	Bits	FPS***	Sensor	Sensor Size
AVT	Stingray F-033 B/C	1394B	656	494	14	84	Sony ICX414	1/3
AVT	Stingray F-046 B/C	1394B	780	582	14	61	Sony ICX415	1/2
AVT	Stingray F-080 B/C	1394B	1024	768	14	31	Sony ICX204	1/3
AVT	Stingray F-145 B/C	1394B	1392	1040	14	16	Sony ICX285	2/3
AVT	Stingray F-146 B/C	1394B	1392	1040	14	15	Sony ICX267	1/2
AVT	Stingray F-201 B/C	1394B	1628	1236	14	14	Sony ICX274	1/1.8

Guppy Camera Features

• VGA to Megapixel, mono & color	• C or CS mount
• Ultra compact housing, 30x30x34mm	• Async trigger
• Internal LUT, FIFO buffer	• 1 input, 3 outputs
• Free SDK & Directshow Driver

Vendor	Model*	Interface**	H Res	V Res	Bits	FPS***	Sensor	Sensor Size
AVT	Guppy-033 B/C	1394A	658	494	8	58	Sony ICX424	1/3
AVT	Guppy-036 B/C	1394A	752	480	8	60	Micron MT9V022	1/3
AVT	Guppy-038 NIR B/C	1394A	768	494	8	30	Sony ICX428	1/2
AVT	Guppy-044 NIR B/C	1394A	752	582	8	25	Sony ICX429	1/2
AVT	Guppy-046 B/C	1394A	780	582	8	49	Sony ICX415	1/2
AVT	Guppy-080 B/C	1394A	1034	778	8	30	Sony ICX204	1/3
AVT	Guppy-146 B/C	1394A	1392	1024	8	17	Sony ICX267	1/2

Pike Camera Features

• Firewire B	• Kodak KAI & Sony EXView
• Mono & Color	• 14 bit A/D
• 64 MB memory buffer	• on board de bayer
• LUTs, shading correction	• 2 inputs, 4 outputs

Vendor	Model*	Interface**	H Res	V Res	Bits	FPS***	Sensor	Sensor Size
AVT	Pike-032 B/C	1394B	640	480	14	208	Kodak KAI-0340	1/3
AVT	Pike-100 B/C	1394B	1000	1000	14	60	Kodak KAI-1020	2/3
AVT	Pike-145 B/C	1394B	1388	1038	14	30	Sony ICX285	2/3
AVT	Pike-210 B/C	1394B	1920	1080	14	31	Kodak KAI-2093	1
AVT	Pike-421 B/C	1394B	2048	2048	14	16	Kodak KAI-4021	1.2
AVT	Pike-505 B/C	1394B	2456	2058	12	15	Sony ICX625	2/3

Marlin Camera Features

• Available in multiple resolutions, mono or color	• CCD or CMOS Sensors from 1/3" to 2/3"
• (VGA, SVGA, XGA, SXGA, UGA)	• C-Mount
• Angle head and customized housings	• Pixel Shading & Correction
• LUTs	• On board memory

Vendor	Model*	Interface**	H Res	V Res	Bits	FPS***	Sensor	Sensor Size
AVT	Marlin-033 B/C	1394A	656	494	10	74	Sony ICX414	1/2
AVT	Marlin-046 B/C	1394A	780	582	10	53	Sony ICX415	1/2
AVT	Marlin-080 B/C	1394A	1032	778	8	30	Sony ICX204	1/3
AVT	Marlin-131 B/C	1394A	1280	1024	8	25	Cypress IBIS5-A-1300	2/3
AVT	Marlin-131 NIR B/C	1394A	1280	1024	8	25	Cypress IBIS5-A-1300	2/3
AVT	Marlin-145 B/C	1394A	1392	1040	8	15	Sony ICX205	1/2
AVT	Marlin-146 B/C	1394A	1392	1040	10	17	Sony ICX267	1/2
AVT	Marlin-201 B/C	1394A	1628	1236	10	15	Sony ICX274	1/1.8

Oscar Camera Features

• 3 compact megapixel color cameras: 3,5,8 Mpixels	• Opto-coupled asynchronous image trigger
• 16 Bit High SNR Mode (improves S/N ratio by	• Auto gain, exposure & white balance
• up to factor 16 = 24 db)	• Color , HUE & Sat Correction
• Realtime shading correction	• Great for microscopy & general imaging

Vendor	Model*	Interface**	H Res	V Res	Bits	FPS***	Sensor	Sensor Size
AVT	Oscar-320 C	1394A	2080	1540	12	6	Sony ICX262	1/1.8
AVT	Oscar-510 C	1394A	2588	1958	12	3	Sony ICX282	2/3
AVT	Oscar-810 C	1394A	3288	2470	12	3	Sony ICX456AQ	2/3

Dolphin Camera Features

• CCD Cameras in 1.4 or 2 Megapixel	• 12 bit A/D
• Long Exposure	• 3 inputs, 3 outputs; configurable
• Lookup Tables & Shading Correction	• 16 image memory buffer

Vendor	Model*	Interface**	H Res	V Res	Bits	FPS***	Sensor	Sensor Size
AVT	Dolphin-145 B/C	1394A	1392	1040	12	12	Sony ICX285	2/3
AVT	Dolphin-201 B/C	1394A	1628	1236	12	12	Sony ICX274	1/1.8

*Model Abbreviations designate camera is available in:
B-Monochrome, M-Monochrome, C-Color, M/C-Monochrome or Color

**Interface - Firewire cameras = 1394 , Camera Link cameras = Cam Link, USB2.0 cameras = USB, Gigabit Ethernet (GigE, GigeVision) = GigE

***FPS - Frames Per Second
‡Details will be available online soon - please call for details
